Using the DFlight API Airspace Endpoints
Background
The National Airspace System (NAS) contains many different categories, types, and designations of airspace. Not all are relevant for UAV operations, but a full understanding of the whole NAS is useful. Your best references are these two FAA publications:
Your concerns as related to airspace will be “am I legally allowed to be here?”, and “is it safe for me to be here?”. DFlight API provides the relevant information you need. In this tutorial we’ll walk through the process of making calls to the airspace endpoints and understanding the results returned to you.
The airspace request body
As with all information categories available in DFlight there are three endpoints for airspace, one for each way you can define your geographic area of interest. In addition to the area definition, /airspace endpoints have one more required element:
- asptypes: list of one or more airspace types you wish to retrieve. Allowed values are “CAS”, “SUA”, “MAA”, and “MTR” where
-
- CAS – Controlled Airspace
- SUA – Special Use Airspace
- MAA – Miscellaneous Activity Areas
- MTR – Military Training Routes

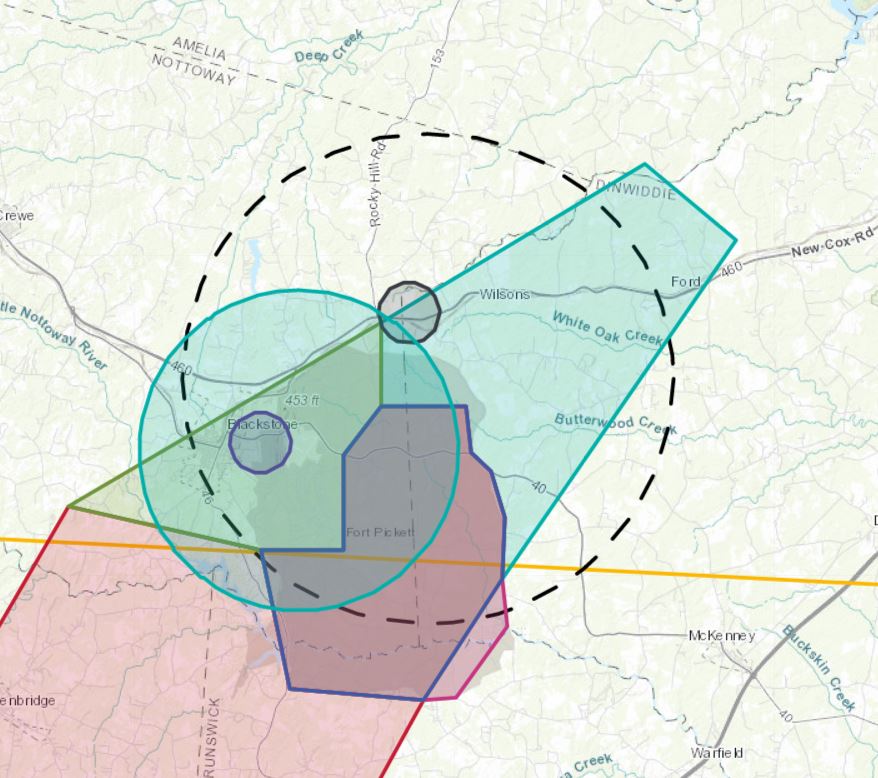

In order to discuss every airspace type available, we will include all types in the asptypes list and will do a distance request whose extent covers at least one of example each. Here is our request body:
{
"longitude": -77.88586,
"latitude": 37.10619,
"distance": 15000,
"asptypes": ["SUA","MTR","MAA","CAS"]
}
and we’ll send our POST request to the /airspace/distance-query endpoint.
Response JSON
{
"found": [
{
"type": "FeatureCollection",
"features": [
{
"type": "Feature",
"geometry": {
"type": "Polygon",
"coordinates": [
[
[
-77.911389,
37.130833
],
[
-77.766389,
37.200278
],
[
-77.716389,
37.166944
],
[
-77.845,
37.018333
],
[
-77.843611,
37.045556
],
[
-77.851111,
37.065556
],
[
-77.862222,
37.073889
],
[
-77.864722,
37.093889
],
[
-77.911389,
37.093889
],
[
-77.911389,
37.130833
]
]
]
},

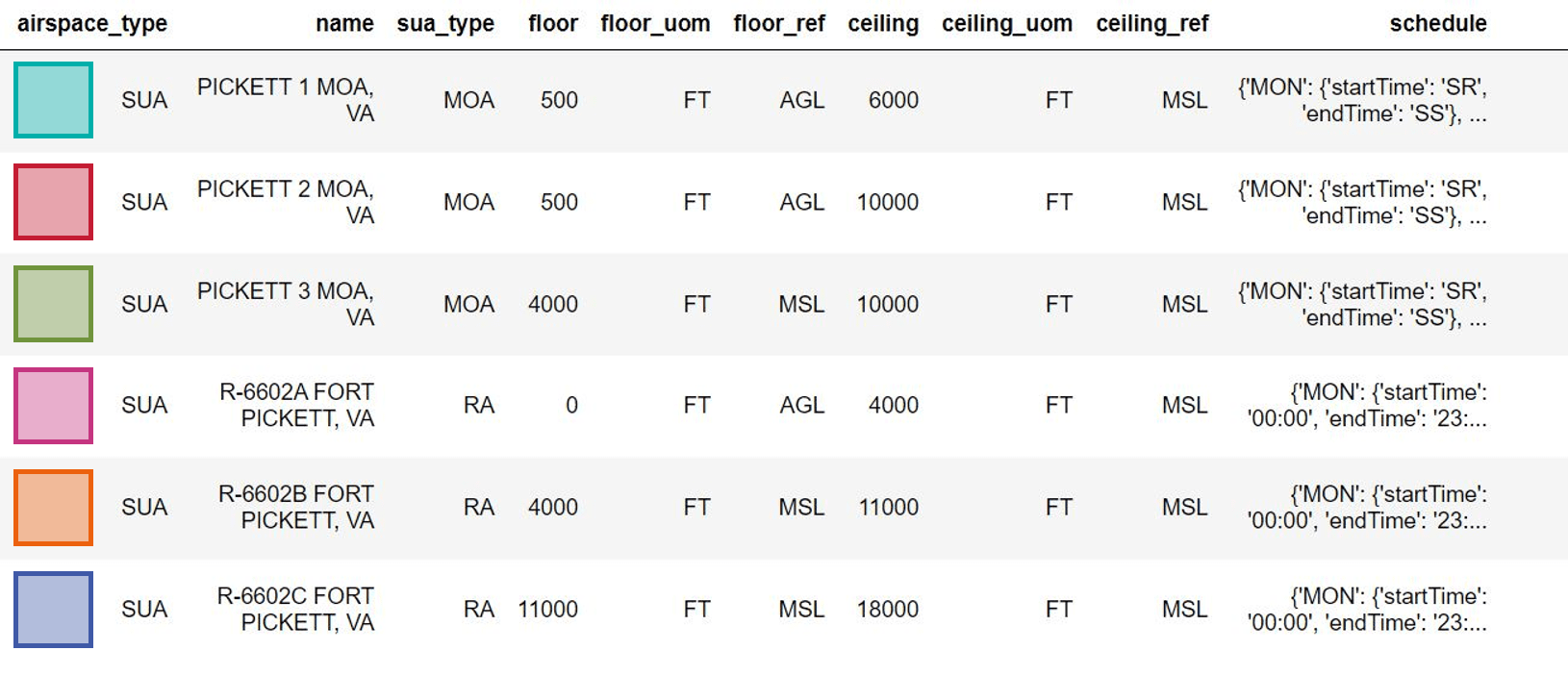

"properties": {
"airspace_type": "SUA",
"name": "PICKETT 1 MOA, VA",
"sua_type": "MOA",
"floor": 500,
"floor_uom": "FT",
"floor_ref": "AGL",
"ceiling": 6000,
"ceiling_uom": "FT",
"ceiling_ref": "MSL",
"schedule": {
"MON": {
"startTime": "SR",
"endTime": "SS"
},
"TUE": {
"startTime": "SR",
"endTime": "SS"
},
"WED": {
"startTime": "SR",
"endTime": "SS"
},
"THU": {
"startTime": "SR",
"endTime": "SS"
},
"FRI": {
"startTime": "SR",
"endTime": "SS"
},
"SAT": {
"startTime": "SR",
"endTime": "SS"
},
"SUN": {
"startTime": "SR",
"endTime": "SS"
}
}
}
},
{
"type": "Feature",
"geometry": {
"type": "Polygon",
"coordinates": [
[
[
-77.888333,
36.965278
],
[
-77.933056,
36.900278
],
[
-78.216389,
36.866944
],
[
-78.083056,
37.050278
],
[
-77.9775,
37.030833
],
[
-77.961389,
36.970278
],
[
-77.888333,
36.965278
]
]
]
},
"properties": {
"airspace_type": "SUA",
"name": "PICKETT 2 MOA, VA",
"sua_type": "MOA",
"floor": 500,
"floor_uom": "FT",
"floor_ref": "AGL",
"ceiling": 10000,
"ceiling_uom": "FT",
"ceiling_ref": "MSL",
"schedule": {
"MON": {
"startTime": "SR",
"endTime": "SS"
},
"TUE": {
"startTime": "SR",
"endTime": "SS"
},
"WED": {
"startTime": "SR",
"endTime": "SS"
},
"THU": {
"startTime": "SR",
"endTime": "SS"
},
"FRI": {
"startTime": "SR",
"endTime": "SS"
},
"SAT": {
"startTime": "SR",
"endTime": "SS"
},
"SUN": {
"startTime": "SR",
"endTime": "SS"
}
}
}
},
{
"type": "Feature",
"geometry": {
"type": "Polygon",
"coordinates": [
[
[
-78.083056,
37.050278
],
[
-77.911389,
37.130833
],
[
-77.911389,
37.093889
],
[
-77.9325,
37.072778
],
[
-77.9325,
37.030833
],
[
-77.9775,
37.030833
],
[
-78.083056,
37.050278
]
]
]
},
"properties": {
"airspace_type": "SUA",
"name": "PICKETT 3 MOA, VA",
"sua_type": "MOA",
"floor": 4000,
"floor_uom": "FT",
"floor_ref": "MSL",
"ceiling": 10000,
"ceiling_uom": "FT",
"ceiling_ref": "MSL",
"schedule": {
"MON": {
"startTime": "SR",
"endTime": "SS"
},
"TUE": {
"startTime": "SR",
"endTime": "SS"
},
"WED": {
"startTime": "SR",
"endTime": "SS"
},
"THU": {
"startTime": "SR",
"endTime": "SS"
},
"FRI": {
"startTime": "SR",
"endTime": "SS"
},
"SAT": {
"startTime": "SR",
"endTime": "SS"
},
"SUN": {
"startTime": "SR",
"endTime": "SS"
}
}
}
},
{
"type": "Feature",
"geometry": {
"type": "Polygon",
"coordinates": [
[
[
-77.864722,
37.093889
],
[
-77.862222,
37.073889
],
[
-77.851111,
37.065556
],
[
-77.843611,
37.045556
],
[
-77.845,
37.018333
],
[
-77.8425,
36.9975
],
[
-77.870278,
36.966389
],
[
-77.888333,
36.965278
],
[
-77.961389,
36.970278
],
[
-77.9775,
37.030833
],
[
-77.9325,
37.030833
],
[
-77.9325,
37.072778
],
[
-77.911389,
37.093889
],
[
-77.864722,
37.093889
]
]
]
},
"properties": {
"airspace_type": "SUA",
"name": "R-6602A FORT PICKETT, VA",
"sua_type": "RA",
"floor": 0,
"floor_uom": "FT",
"floor_ref": "AGL",
"ceiling": 4000,
"ceiling_uom": "FT",
"ceiling_ref": "MSL",
"schedule": {
"MON": {
"startTime": "00:00",
"endTime": "23:59"
},
"TUE": {
"startTime": "00:00",
"endTime": "23:59"
},
"WED": {
"startTime": "00:00",
"endTime": "23:59"
},
"THU": {
"startTime": "00:00",
"endTime": "23:59"
},
"FRI": {
"startTime": "00:00",
"endTime": "23:59"
},
"SAT": {
"startTime": "00:00",
"endTime": "23:59"
},
"SUN": {
"startTime": "00:00",
"endTime": "23:59"
}
}
}
},
{
"type": "Feature",
"geometry": {
"type": "Polygon",
"coordinates": [
[
[
-77.864722,
37.093889
],
[
-77.862222,
37.073889
],
[
-77.851111,
37.065556
],
[
-77.843611,
37.045556
],
[
-77.845,
37.018333
],
[
-77.888333,
36.965278
],
[
-77.961389,
36.970278
],
[
-77.9775,
37.030833
],
[
-77.9325,
37.030833
],
[
-77.9325,
37.072778
],
[
-77.911389,
37.093889
],
[
-77.864722,
37.093889
]
]
]
},
"properties": {
"airspace_type": "SUA",
"name": "R-6602B FORT PICKETT, VA",
"sua_type": "RA",
"floor": 4000,
"floor_uom": "FT",
"floor_ref": "MSL",
"ceiling": 11000,
"ceiling_uom": "FT",
"ceiling_ref": "MSL",
"schedule": {
"MON": {
"startTime": "00:00",
"endTime": "23:59"
},
"TUE": {
"startTime": "00:00",
"endTime": "23:59"
},
"WED": {
"startTime": "00:00",
"endTime": "23:59"
},
"THU": {
"startTime": "00:00",
"endTime": "23:59"
},
"FRI": {
"startTime": "00:00",
"endTime": "23:59"
},
"SAT": {
"startTime": "00:00",
"endTime": "23:59"
},
"SUN": {
"startTime": "00:00",
"endTime": "23:59"
}
}
}
},
{
"type": "Feature",
"geometry": {
"type": "Polygon",
"coordinates": [
[
[
-77.864722,
37.093889
],
[
-77.862222,
37.073889
],
[
-77.851111,
37.065556
],
[
-77.843611,
37.045556
],
[
-77.845,
37.018333
],
[
-77.888333,
36.965278
],
[
-77.961389,
36.970278
],
[
-77.9775,
37.030833
],
[
-77.9325,
37.030833
],
[
-77.9325,
37.072778
],
[
-77.911389,
37.093889
],
[
-77.864722,
37.093889
]
]
]
},
"properties": {
"airspace_type": "SUA",
"name": "R-6602C FORT PICKETT, VA",
"sua_type": "RA",
"floor": 11000,
"floor_uom": "FT",
"floor_ref": "MSL",
"ceiling": 18000,
"ceiling_uom": "FT",
"ceiling_ref": "MSL",
"schedule": {
"MON": {
"startTime": "00:00",
"endTime": "23:59"
},
"TUE": {
"startTime": "00:00",
"endTime": "23:59"
},
"WED": {
"startTime": "00:00",
"endTime": "23:59"
},
"THU": {
"startTime": "00:00",
"endTime": "23:59"
},
"FRI": {
"startTime": "00:00",
"endTime": "23:59"
},
"SAT": {
"startTime": "00:00",
"endTime": "23:59"
},
"SUN": {
"startTime": "00:00",
"endTime": "23:59"
}
}
}
}
]
},
{
"type": "FeatureCollection",
"features": [
{
"type": "Feature",
"geometry": {
"type": "LineString",
"coordinates": [
[
-75.316667,
36.283333
],
[
-76.716665,
36.166665
],
[
-77.63333,
36.466668
],
[
-77.299995,
36.883332
],
[
-78.599997,
36.883333
],
[
-80,
36.783332
],
[
-79.516665,
36.799998
],
[
-79.016665,
36.399999
],
[
-80.45,
36.649999
],
[
-80.766667,
36.883332
],
[
-79.283331,
36.966666
],
[
-78.466663,
37.049999
],
[
-77.249995,
36.999998
],
[
-76.416659,
36.599998
],
[
-75.133333,
36.583333
]
]
},

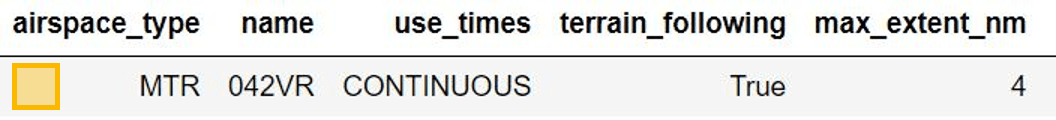

"properties": {
"airspace_type": "MTR",
"name": "042VR",
"use_times": "CONTINUOUS",
"terrain_following": true,
"max_extent_nm": 4
}
}
]
},
{
"type": "FeatureCollection",
"features": [
{
"type": "Feature",
"geometry": {
"type": "Polygon",
"coordinates": [
[
[
-77.96129,
37.078178
],
[
-77.96137,
37.076877
],
[
-77.961609,
37.075589
],
[
-77.962006,
37.074325
],
[
-77.962556,
37.073099
],
[
-77.963254,
37.071921
],
[
-77.964093,
37.070804
],
[
-77.965066,
37.069757
],
[
-77.966162,
37.068792
],
[
-77.967372,
37.067917
],
[
-77.968684,
37.067141
],
[
-77.970084,
37.066471
],
[
-77.97156,
37.065914
],
[
-77.973097,
37.065475
],
[
-77.974681,
37.065159
],
[
-77.976296,
37.064968
],
[
-77.977926,
37.064904
],
[
-77.979557,
37.064968
],
[
-77.981172,
37.065159
],
[
-77.982756,
37.065475
],
[
-77.984293,
37.065914
],
[
-77.985769,
37.066471
],
[
-77.987169,
37.067141
],
[
-77.988481,
37.067917
],
[
-77.98969,
37.068792
],
[
-77.990787,
37.069757
],
[
-77.991759,
37.070804
],
[
-77.992599,
37.071921
],
[
-77.993297,
37.073099
],
[
-77.993847,
37.074325
],
[
-77.994244,
37.075589
],
[
-77.994483,
37.076877
],
[
-77.994563,
37.078178
],
[
-77.994483,
37.079479
],
[
-77.994244,
37.080767
],
[
-77.993847,
37.082031
],
[
-77.993297,
37.083257
],
[
-77.992599,
37.084435
],
[
-77.991759,
37.085552
],
[
-77.990787,
37.086598
],
[
-77.98969,
37.087563
],
[
-77.988481,
37.088438
],
[
-77.987169,
37.089213
],
[
-77.985769,
37.089883
],
[
-77.984293,
37.09044
],
[
-77.982756,
37.090879
],
[
-77.981172,
37.091195
],
[
-77.979557,
37.091386
],
[
-77.977926,
37.09145
],
[
-77.976296,
37.091386
],
[
-77.974681,
37.091195
],
[
-77.973097,
37.090879
],
[
-77.97156,
37.09044
],
[
-77.970084,
37.089883
],
[
-77.968684,
37.089213
],
[
-77.967372,
37.088438
],
[
-77.966162,
37.087563
],
[
-77.965066,
37.086598
],
[
-77.964093,
37.085552
],
[
-77.963254,
37.084435
],
[
-77.962556,
37.083257
],
[
-77.962006,
37.082031
],
[
-77.961609,
37.080767
],
[
-77.96137,
37.079479
],
[
-77.96129,
37.078178
]
]
]
},

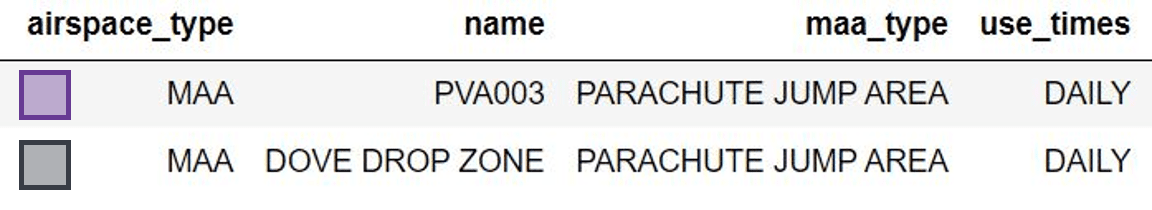

"properties": {
"airspace_type": "MAA",
"name": "PVA003",
"maa_type": "PARACHUTE JUMP AREA",
"use_times": "DAILY"
}
},
{
"type": "Feature",
"geometry": {
"type": "Polygon",
"coordinates": [
[
[
-77.879415,
37.13506
],
[
-77.879495,
37.13376
],
[
-77.879735,
37.132472
],
[
-77.880132,
37.131209
],
[
-77.880682,
37.129984
],
[
-77.88138,
37.128807
],
[
-77.882219,
37.127691
],
[
-77.883192,
37.126645
],
[
-77.884288,
37.125681
],
[
-77.885498,
37.124806
],
[
-77.886809,
37.124031
],
[
-77.88821,
37.123362
],
[
-77.889685,
37.122805
],
[
-77.891223,
37.122367
],
[
-77.892806,
37.12205
],
[
-77.894421,
37.121859
],
[
-77.896052,
37.121795
],
[
-77.897683,
37.121859
],
[
-77.899298,
37.12205
],
[
-77.900881,
37.122367
],
[
-77.902419,
37.122805
],
[
-77.903895,
37.123362
],
[
-77.905295,
37.124031
],
[
-77.906606,
37.124806
],
[
-77.907816,
37.125681
],
[
-77.908912,
37.126645
],
[
-77.909885,
37.127691
],
[
-77.910724,
37.128807
],
[
-77.911422,
37.129984
],
[
-77.911972,
37.131209
],
[
-77.912369,
37.132472
],
[
-77.912609,
37.13376
],
[
-77.912689,
37.13506
],
[
-77.912609,
37.13636
],
[
-77.912369,
37.137647
],
[
-77.911972,
37.13891
],
[
-77.911422,
37.140135
],
[
-77.910724,
37.141312
],
[
-77.909885,
37.142428
],
[
-77.908912,
37.143473
],
[
-77.907816,
37.144438
],
[
-77.906606,
37.145311
],
[
-77.905295,
37.146087
],
[
-77.903895,
37.146756
],
[
-77.902419,
37.147312
],
[
-77.900881,
37.147751
],
[
-77.899298,
37.148067
],
[
-77.897683,
37.148258
],
[
-77.896052,
37.148322
],
[
-77.894421,
37.148258
],
[
-77.892806,
37.148067
],
[
-77.891223,
37.147751
],
[
-77.889685,
37.147312
],
[
-77.88821,
37.146756
],
[
-77.886809,
37.146087
],
[
-77.885498,
37.145311
],
[
-77.884288,
37.144438
],
[
-77.883192,
37.143473
],
[
-77.882219,
37.142428
],
[
-77.88138,
37.141312
],
[
-77.880682,
37.140135
],
[
-77.880132,
37.13891
],
[
-77.879735,
37.137647
],
[
-77.879495,
37.13636
],
[
-77.879415,
37.13506
]
]
]
},
"properties": {
"airspace_type": "MAA",
"name": "DOVE DROP ZONE",
"maa_type": "PARACHUTE JUMP AREA",
"use_times": "DAILY"
}
}
]
},
{
"type": "FeatureCollection",
"features": [
{
"type": "Feature",
"geometry": {
"type": "Polygon",
"coordinates": [
[
[
-77.956662,
37.144809
],
[
-77.956487,
37.144809
],
[
-77.956312,
37.144808
],
[
-77.956137,
37.144808
],
[
-77.955962,
37.144807
],
[
-77.955787,
37.144805
],
[
-77.955612,
37.144804
],
[
-77.955437,
37.144802
],
[
-77.955261,
37.1448
],
[
-77.955086,
37.144798
],
[
-77.954911,
37.144795
],
[
-77.954736,
37.144792
],
[
-77.954561,
37.144789
],
[
-77.954386,
37.144785
],
[
-77.954211,
37.144781
],
[
-77.954036,
37.144777
],
[
-77.953861,
37.144773
],
[
-77.953686,
37.144768
],
[
-77.953511,
37.144763
],
[
-77.953336,
37.144758
],
[
-77.953161,
37.144753
],
[
-77.952986,
37.144747
],
[
-77.952811,
37.144741
],
[
-77.952636,
37.144735
],
[
-77.952461,
37.144728
],
[
-77.952286,
37.144721
],
[
-77.952112,
37.144714
],
[
-77.951937,
37.144707
],
[
-77.951762,
37.144699
],
[
-77.951587,
37.144691
],
[
-77.951412,
37.144683
],
[
-77.951237,
37.144674
],
[
-77.951063,
37.144665
],
[
-77.950888,
37.144656
],
[
-77.950713,
37.144647
],
[
-77.950539,
37.144637
],
[
-77.950364,
37.144627
],
[
-77.950189,
37.144617
],
[
-77.950015,
37.144606
],
[
-77.94984,
37.144596
],
[
-77.949665,
37.144585
],
[
-77.949491,
37.144573
],
[
-77.949316,
37.144562
],
[
-77.949142,
37.14455
],
[
-77.948968,
37.144537
],
[
-77.948793,
37.144525
],
[
-77.948619,
37.144512
],
[
-77.948444,
37.144499
],
[
-77.94827,
37.144486
],
[
-77.948096,
37.144472
],
[
-77.947922,
37.144458
],
[
-77.947747,
37.144444
],
[
-77.947573,
37.14443
],
[
-77.947399,
37.144415
],
[
-77.947225,
37.1444
],
[
-77.947051,
37.144385
],
[
-77.946877,
37.144369
],
[
-77.946703,
37.144354
],
[
-77.946529,
37.144337
],
[
-77.946355,
37.144321
],
[
-77.946181,
37.144304
],
[
-77.946007,
37.144287
],
[
-77.945834,
37.14427
],
[
-77.94566,
37.144253
],
[
-77.945486,
37.144235
],
[
-77.945312,
37.144217
],
[
-77.945139,
37.144199
],
[
-77.944965,
37.14418
],
[
-77.944792,
37.144161
],
[
-77.944618,
37.144142
],
[
-77.944445,
37.144123
],
[
-77.944272,
37.144103
],
[
-77.944098,
37.144083
],
[
-77.943925,
37.144063
],
[
-77.943752,
37.144042
],
[
-77.943579,
37.144021
],
[
-77.943406,
37.144
],
[
-77.943232,
37.143979
],
[
-77.943059,
37.143957
],
[
-77.942887,
37.143935
],
[
-77.942714,
37.143913
],
[
-77.942541,
37.14389
],
[
-77.942368,
37.143868
],
[
-77.942195,
37.143845
],
[
-77.942023,
37.143821
],
[
-77.94185,
37.143798
],
[
-77.941677,
37.143774
],
[
-77.941505,
37.14375
],
[
-77.941333,
37.143725
],
[
-77.94116,
37.1437
],
[
-77.940988,
37.143676
],
[
-77.940816,
37.14365
],
[
-77.940644,
37.143625
],
[
-77.940471,
37.143599
],
[
-77.940299,
37.143573
],
[
-77.940127,
37.143546
],
[
-77.939955,
37.14352
],
[
-77.939784,
37.143493
],
[
-77.939612,
37.143466
],
[
-77.93944,
37.143438
],
[
-77.939268,
37.143411
],
[
-77.939097,
37.143383
],
[
-77.938925,
37.143354
],
[
-77.938754,
37.143326
],
[
-77.938583,
37.143297
],
[
-77.938411,
37.143268
],
[
-77.93824,
37.143238
],
[
-77.938069,
37.143209
],
[
-77.937898,
37.143179
],
[
-77.937727,
37.143149
],
[
-77.937556,
37.143118
],
[
-77.937385,
37.143087
],
[
-77.937214,
37.143056
],
[
-77.937044,
37.143025
],
[
-77.936873,
37.142993
],
[
-77.936703,
37.142962
],
[
-77.936532,
37.142929
],
[
-77.936362,
37.142897
],
[
-77.936192,
37.142864
],
[
-77.936021,
37.142831
],
[
-77.935851,
37.142798
],
[
-77.935681,
37.142765
],
[
-77.935511,
37.142731
],
[
-77.935341,
37.142697
],
[
-77.935172,
37.142663
],
[
-77.935002,
37.142628
],
[
-77.934832,
37.142593
],
[
-77.934663,
37.142558
],
[
-77.934493,
37.142523
],
[
-77.934324,
37.142487
],
[
-77.934155,
37.142451
],
[
-77.933986,
37.142415
],
[
-77.933817,
37.142378
],
[
-77.933648,
37.142342
],
[
-77.933479,
37.142305
],
[
-77.93331,
37.142267
],
[
-77.933141,
37.14223
],
[
-77.932973,
37.142192
],
[
-77.932804,
37.142154
],
[
-77.932636,
37.142116
],
[
-77.932467,
37.142077
],
[
-77.932299,
37.142038
],
[
-77.932131,
37.141999
],
[
-77.931963,
37.141959
],
[
-77.931795,
37.14192
],
[
-77.931627,
37.14188
],
[
-77.93146,
37.141839
],
[
-77.931292,
37.141799
],
[
-77.931124,
37.141758
],
[
-77.930957,
37.141717
],
[
-77.93079,
37.141676
],
[
-77.930622,
37.141634
],
[
-77.930455,
37.141592
],
[
-77.930288,
37.14155
],
[
-77.930121,
37.141508
],
[
-77.929955,
37.141465
],
[
-77.929788,
37.141422
],
[
-77.929621,
37.141379
],
[
-77.929455,
37.141335
],
[
-77.929289,
37.141292
],
[
-77.929122,
37.141248
],
[
-77.928956,
37.141203
],
[
-77.92879,
37.141159
],
[
-77.928624,
37.141114
],
[
-77.928458,
37.141069
],
[
-77.928293,
37.141024
],
[
-77.928127,
37.140978
],
[
-77.927962,
37.140932
],
[
-77.927796,
37.140886
],
[
-77.927631,
37.14084
],
[
-77.927466,
37.140793
],
[
-77.927301,
37.140746
],
[
-77.927136,
37.140699
],
[
-77.926971,
37.140652
],
[
-77.926807,
37.140604
],
[
-77.926642,
37.140556
],
[
-77.926478,
37.140508
],
[
-77.926314,
37.140459
],
[
-77.926149,
37.14041
],
[
-77.925985,
37.140361
],
[
-77.925821,
37.140312
],
[
-77.925658,
37.140262
],
[
-77.925494,
37.140213
],
[
-77.92533,
37.140163
],
[
-77.925167,
37.140112
],
[
-77.925004,
37.140062
],
[
-77.924841,
37.140011
],
[
-77.924678,
37.13996
],
[
-77.924515,
37.139908
],
[
-77.924352,
37.139857
],
[
-77.924189,
37.139805
],
[
-77.924027,
37.139753
],
[
-77.923864,
37.1397
],
[
-77.923702,
37.139647
],
[
-77.92354,
37.139594
],
[
-77.923378,
37.139541
],
[
-77.923216,
37.139488
],
[
-77.923054,
37.139434
],
[
-77.922893,
37.13938
],
[
-77.922731,
37.139326
],
[
-77.92257,
37.139271
],
[
-77.922409,
37.139217
],
[
-77.922248,
37.139162
],
[
-77.922087,
37.139106
],
[
-77.921926,
37.139051
],
[
-77.921766,
37.138995
],
[
-77.921605,
37.138939
],
[
-77.921445,
37.138883
],
[
-77.921285,
37.138826
],
[
-77.921124,
37.138769
],
[
-77.920965,
37.138712
],
[
-77.920805,
37.138655
],
[
-77.920645,
37.138597
],
[
-77.920486,
37.138539
],
[
-77.920326,
37.138481
],
[
-77.920167,
37.138423
],
[
-77.920008,
37.138364
],
[
-77.919849,
37.138305
],
[
-77.91969,
37.138246
],
[
-77.919532,
37.138187
],
[
-77.919373,
37.138127
],
[
-77.919215,
37.138067
],
[
-77.919057,
37.138007
],
[
-77.918899,
37.137947
],
[
-77.918741,
37.137886
],
[
-77.918583,
37.137825
],
[
-77.918426,
37.137764
],
[
-77.918268,
37.137703
],
[
-77.918111,
37.137641
],
[
-77.917954,
37.137579
],
[
-77.917797,
37.137517
],
[
-77.91764,
37.137455
],
[
-77.917484,
37.137392
],
[
-77.917327,
37.137329
],
[
-77.917171,
37.137266
],
[
-77.917015,
37.137203
],
[
-77.916859,
37.137139
],
[
-77.916703,
37.137075
],
[
-77.916547,
37.137011
],
[
-77.916392,
37.136946
],
[
-77.916236,
37.136882
],
[
-77.916081,
37.136817
],
[
-77.915926,
37.136752
],
[
-77.915771,
37.136686
],
[
-77.915617,
37.136621
],
[
-77.915462,
37.136555
],
[
-77.915308,
37.136489
],
[
-77.915154,
37.136422
],
[
-77.915,
37.136356
],
[
-77.914846,
37.136289
],
[
-77.914692,
37.136221
],
[
-77.914538,
37.136154
],
[
-77.914385,
37.136086
],
[
-77.914232,
37.136019
],
[
-77.914079,
37.13595
],
[
-77.913926,
37.135882
],
[
-77.913773,
37.135814
],
[
-77.913621,
37.135745
],
[
-77.913468,
37.135676
],
[
-77.913316,
37.135606
],
[
-77.913164,
37.135537
],
[
-77.913013,
37.135467
],
[
-77.912861,
37.135397
],
[
-77.912709,
37.135326
],
[
-77.912558,
37.135256
],
[
-77.912407,
37.135185
],
[
-77.912256,
37.135114
],
[
-77.912105,
37.135043
],
[
-77.911955,
37.134971
],
[
-77.911804,
37.134899
],
[
-77.911654,
37.134827
],
[
-77.911504,
37.134755
],
[
-77.911354,
37.134683
],
[
-77.911205,
37.13461
],
[
-77.911055,
37.134537
],
[
-77.910906,
37.134464
],
[
-77.910757,
37.13439
],
[
-77.910608,
37.134317
],
[
-77.910459,
37.134243
],
[
-77.91031,
37.134169
],
[
-77.910162,
37.134094
],
[
-77.910014,
37.13402
],
[
-77.909866,
37.133945
],
[
-77.909718,
37.13387
],
[
-77.90957,
37.133794
],
[
-77.909423,
37.133719
],
[
-77.909276,
37.133643
],
[
-77.909129,
37.133567
],
[
-77.908982,
37.13349
],
[
-77.908835,
37.133414
],
[
-77.908688,
37.133337
],
[
-77.908542,
37.13326
],
[
-77.908396,
37.133183
],
[
-77.90825,
37.133105
],
[
-77.908104,
37.133028
],
[
-77.907959,
37.13295
],
[
-77.907814,
37.132872
],
[
-77.907668,
37.132793
],
[
-77.907523,
37.132715
],
[
-77.907379,
37.132636
],
[
-77.907234,
37.132557
],
[
-77.90709,
37.132477
],
[
-77.906946,
37.132398
],
[
-77.906802,
37.132318
],
[
-77.906658,
37.132238
],
[
-77.906514,
37.132158
],
[
-77.906371,
37.132077
],
[
-77.906228,
37.131997
],
[
-77.906085,
37.131916
],
[
-77.905942,
37.131834
],
[
-77.9058,
37.131753
],
[
-77.905657,
37.131671
],
[
-77.905515,
37.13159
],
[
-77.905373,
37.131508
],
[
-77.905232,
37.131425
],
[
-77.90509,
37.131343
],
[
-77.904949,
37.13126
],
[
-77.904808,
37.131177
],
[
-77.904667,
37.131094
],
[
-77.904526,
37.13101
],
[
-77.904386,
37.130927
],
[
-77.904245,
37.130843
],
[
-77.904105,
37.130759
],
[
-77.903966,
37.130674
],
[
-77.903826,
37.13059
],
[
-77.903686,
37.130505
],
[
-77.903547,
37.13042
],
[
-77.903408,
37.130335
],
[
-77.903269,
37.130249
],
[
-77.903131,
37.130164
],
[
-77.902993,
37.130078
],
[
-77.902854,
37.129992
],
[
-77.902717,
37.129905
],
[
-77.902579,
37.129819
],
[
-77.902441,
37.129732
],
[
-77.902304,
37.129645
],
[
-77.902167,
37.129558
],
[
-77.90203,
37.12947
],
[
-77.901894,
37.129383
],
[
-77.901757,
37.129295
],
[
-77.901621,
37.129207
],
[
-77.901485,
37.129118
],
[
-77.901349,
37.12903
],
[
-77.901214,
37.128941
],
[
-77.901078,
37.128852
],
[
-77.900943,
37.128763
],
[
-77.900809,
37.128673
],
[
-77.900674,
37.128584
],
[
-77.90054,
37.128494
],
[
-77.900405,
37.128404
],
[
-77.900271,
37.128314
],
[
-77.900138,
37.128223
],
[
-77.900004,
37.128133
],
[
-77.899871,
37.128042
],
[
-77.899738,
37.127951
],
[
-77.899605,
37.127859
],
[
-77.899473,
37.127768
],
[
-77.89934,
37.127676
],
[
-77.899208,
37.127584
],
[
-77.899076,
37.127492
],
[
-77.898945,
37.127399
],
[
-77.898813,
37.127307
],
[
-77.898682,
37.127214
],
[
-77.898551,
37.127121
],
[
-77.89842,
37.127028
],
[
-77.89829,
37.126934
],
[
-77.898159,
37.126841
],
[
-77.898029,
37.126747
],
[
-77.8979,
37.126653
],
[
-77.89777,
37.126558
],
[
-77.897641,
37.126464
],
[
-77.897512,
37.126369
],
[
-77.897383,
37.126274
],
[
-77.897254,
37.126179
],
[
-77.897126,
37.126084
],
[
-77.896998,
37.125988
],
[
-77.89687,
37.125893
],
[
-77.896742,
37.125797
],
[
-77.896615,
37.125701
],
[
-77.896488,
37.125604
],
[
-77.896361,
37.125508
],
[
-77.896234,
37.125411
],
[
-77.896107,
37.125314
],
[
-77.895981,
37.125217
],
[
-77.895855,
37.12512
],
[
-77.89573,
37.125022
],
[
-77.895604,
37.124924
],
[
-77.895479,
37.124826
],
[
-77.895354,
37.124728
],
[
-77.895229,
37.12463
],
[
-77.895105,
37.124531
],
[
-77.89498,
37.124433
],
[
-77.894856,
37.124334
],
[
-77.894733,
37.124235
],
[
-77.894609,
37.124135
],
[
-77.894486,
37.124036
],
[
-77.894363,
37.123936
],
[
-77.89424,
37.123836
],
[
-77.894118,
37.123736
],
[
-77.893995,
37.123636
],
[
-77.893873,
37.123535
],
[
-77.893752,
37.123434
],
[
-77.89363,
37.123333
],
[
-77.893509,
37.123232
],
[
-77.893388,
37.123131
],
[
-77.893267,
37.123029
],
[
-77.893147,
37.122928
],
[
-77.893026,
37.122826
],
[
-77.892906,
37.122724
],
[
-77.892787,
37.122622
],
[
-77.892667,
37.122519
],
[
-77.892548,
37.122416
],
[
-77.892429,
37.122314
],
[
-77.89231,
37.122211
],
[
-77.892192,
37.122107
],
[
-77.892074,
37.122004
],
[
-77.891956,
37.1219
],
[
-77.891838,
37.121797
],
[
-77.891721,
37.121693
],
[
-77.891604,
37.121588
],
[
-77.891487,
37.121484
],
[
-77.89137,
37.12138
],
[
-77.891254,
37.121275
],
[
-77.891138,
37.12117
],
[
-77.891022,
37.121065
],
[
-77.890906,
37.12096
],
[
-77.890791,
37.120854
],
[
-77.890676,
37.120748
],
[
-77.890561,
37.120643
],
[
-77.890447,
37.120537
],
[
-77.890332,
37.12043
],
[
-77.890218,
37.120324
],
[
-77.890105,
37.120217
],
[
-77.889991,
37.120111
],
[
-77.889878,
37.120004
],
[
-77.889765,
37.119897
],
[
-77.889652,
37.119789
],
[
-77.88954,
37.119682
],
[
-77.889428,
37.119574
],
[
-77.889316,
37.119466
],
[
-77.889205,
37.119358
],
[
-77.889093,
37.11925
],
[
-77.888982,
37.119142
],
[
-77.888871,
37.119033
],
[
-77.888761,
37.118924
],
[
-77.888651,
37.118816
],
[
-77.888541,
37.118706
],
[
-77.888431,
37.118597
],
[
-77.888322,
37.118488
],
[
-77.888213,
37.118378
],
[
-77.888104,
37.118268
],
[
-77.887995,
37.118158
],
[
-77.887887,
37.118048
],
[
-77.887779,
37.117938
],
[
-77.887671,
37.117828
],
[
-77.887564,
37.117717
],
[
-77.887456,
37.117606
],
[
-77.88735,
37.117495
],
[
-77.887243,
37.117384
],
[
-77.887137,
37.117273
],
[
-77.88703,
37.117161
],
[
-77.886925,
37.117049
],
[
-77.886819,
37.116938
],
[
-77.886714,
37.116826
],
[
-77.886609,
37.116713
],
[
-77.886504,
37.116601
],
[
-77.8864,
37.116489
],
[
-77.886296,
37.116376
],
[
-77.886192,
37.116263
],
[
-77.886088,
37.11615
],
[
-77.885985,
37.116037
],
[
-77.885882,
37.115923
],
[
-77.885779,
37.11581
],
[
-77.885677,
37.115696
],
[
-77.885575,
37.115582
],
[
-77.885473,
37.115468
],
[
-77.885371,
37.115354
],
[
-77.88527,
37.11524
],
[
-77.885169,
37.115125
],
[
-77.885068,
37.115011
],
[
-77.884968,
37.114896
],
[
-77.884868,
37.114781
],
[
-77.884768,
37.114666
],
[
-77.884668,
37.114551
],
[
-77.884569,
37.114435
],
[
-77.88447,
37.11432
],
[
-77.884371,
37.114204
],
[
-77.884273,
37.114088
],
[
-77.884175,
37.113972
],
[
-77.884077,
37.113856
],
[
-77.88398,
37.113739
],
[
-77.883882,
37.113623
],
[
-77.883785,
37.113506
],
[
-77.883689,
37.113389
],
[
-77.883592,
37.113272
],
[
-77.883496,
37.113155
],
[
-77.883401,
37.113037
],
[
-77.883305,
37.11292
],
[
-77.88321,
37.112802
],
[
-77.883115,
37.112685
],
[
-77.88302,
37.112567
],
[
-77.882926,
37.112449
],
[
-77.882832,
37.11233
],
[
-77.882738,
37.112212
],
[
-77.882645,
37.112093
],
[
-77.882552,
37.111975
],
[
-77.882459,
37.111856
],
[
-77.882366,
37.111737
],
[
-77.882274,
37.111618
],
[
-77.882182,
37.111498
],
[
-77.882091,
37.111379
],
[
-77.881999,
37.111259
],
[
-77.881908,
37.11114
],
[
-77.881818,
37.11102
],
[
-77.881727,
37.1109
],
[
-77.881637,
37.11078
],
[
-77.881547,
37.110659
],
[
-77.881458,
37.110539
],
[
-77.881368,
37.110418
],
[
-77.881279,
37.110298
],
[
-77.881191,
37.110177
],
[
-77.881102,
37.110056
],
[
-77.881014,
37.109935
],
[
-77.880927,
37.109813
],
[
-77.880839,
37.109692
],
[
-77.880752,
37.10957
],
[
-77.880665,
37.109449
],
[
-77.880579,
37.109327
],
[
-77.880493,
37.109205
],
[
-77.880407,
37.109083
],
[
-77.880321,
37.10896
],
[
-77.880236,
37.108838
],
[
-77.880151,
37.108715
],
[
-77.880066,
37.108593
],
[
-77.879982,
37.10847
],
[
-77.879898,
37.108347
],
[
-77.879814,
37.108224
],
[
-77.879731,
37.108101
],
[
-77.879647,
37.107977
],
[
-77.879565,
37.107854
],
[
-77.879482,
37.10773
],
[
-77.8794,
37.107606
],
[
-77.879318,
37.107482
],
[
-77.879236,
37.107358
],
[
-77.879155,
37.107234
],
[
-77.879074,
37.10711
],
[
-77.878993,
37.106986
],
[
-77.878913,
37.106861
],
[
-77.878833,
37.106736
],
[
-77.878753,
37.106612
],
[
-77.878674,
37.106487
],
[
-77.878595,
37.106362
],
[
-77.878516,
37.106237
],
[
-77.878438,
37.106111
],
[
-77.878359,
37.105986
],
[
-77.878282,
37.10586
],
[
-77.878204,
37.105735
],
[
-77.878127,
37.105609
],
[
-77.87805,
37.105483
],
[
-77.877973,
37.105357
],
[
-77.877897,
37.105231
],
[
-77.877821,
37.105104
],
[
-77.877745,
37.104978
],
[
-77.87767,
37.104851
],
[
-77.877595,
37.104725
],
[
-77.87752,
37.104598
],
[
-77.877446,
37.104471
],
[
-77.877372,
37.104344
],
[
-77.877298,
37.104217
],
[
-77.877225,
37.10409
],
[
-77.877152,
37.103962
],
[
-77.877079,
37.103835
],
[
-77.877006,
37.103707
],
[
-77.876934,
37.10358
],
[
-77.876862,
37.103452
],
[
-77.876791,
37.103324
],
[
-77.87672,
37.103196
],
[
-77.876649,
37.103068
],
[
-77.876578,
37.102939
],
[
-77.876508,
37.102811
],
[
-77.876438,
37.102683
],
[
-77.876368,
37.102554
],
[
-77.876299,
37.102425
],
[
-77.87623,
37.102296
],
[
-77.876162,
37.102167
],
[
-77.876093,
37.102038
],
[
-77.876025,
37.101909
],
[
-77.875958,
37.10178
],
[
-77.87589,
37.10165
],
[
-77.875823,
37.101521
],
[
-77.875757,
37.101391
],
[
-77.87569,
37.101262
],
[
-77.875624,
37.101132
],
[
-77.875559,
37.101002
],
[
-77.875493,
37.100872
],
[
-77.875428,
37.100742
],
[
-77.875363,
37.100612
],
[
-77.875299,
37.100481
],
[
-77.875235,
37.100351
],
[
-77.875171,
37.10022
],
[
-77.875108,
37.10009
],
[
-77.875045,
37.099959
],
[
-77.874982,
37.099828
],
[
-77.874919,
37.099697
],
[
-77.874857,
37.099566
],
[
-77.874795,
37.099435
],
[
-77.874734,
37.099304
],
[
-77.874673,
37.099172
],
[
-77.874612,
37.099041
],
[
-77.874551,
37.098909
],
[
-77.874491,
37.098778
],
[
-77.874431,
37.098646
],
[
-77.874372,
37.098514
],
[
-77.874313,
37.098382
],
[
-77.874254,
37.09825
],
[
-77.874195,
37.098118
],
[
-77.874137,
37.097986
],
[
-77.874079,
37.097854
],
[
-77.874022,
37.097721
],
[
-77.873965,
37.097589
],
[
-77.873908,
37.097456
],
[
-77.873851,
37.097323
],
[
-77.873795,
37.097191
],
[
-77.873739,
37.097058
],
[
-77.873684,
37.096925
],
[
-77.873628,
37.096792
],
[
-77.873574,
37.096659
],
[
-77.873519,
37.096526
],
[
-77.873465,
37.096392
],
[
-77.873411,
37.096259
],
[
-77.873357,
37.096126
],
[
-77.873304,
37.095992
],
[
-77.873251,
37.095858
],
[
-77.873199,
37.095725
],
[
-77.873147,
37.095591
],
[
-77.873095,
37.095457
],
[
-77.873043,
37.095323
],
[
-77.872992,
37.095189
],
[
-77.872941,
37.095055
],
[
-77.872891,
37.094921
],
[
-77.87284,
37.094786
],
[
-77.872791,
37.094652
],
[
-77.872741,
37.094518
],
[
-77.872692,
37.094383
],
[
-77.872643,
37.094248
],
[
-77.872595,
37.094114
],
[
-77.872546,
37.093979
],
[
-77.872499,
37.093844
],
[
-77.872451,
37.093709
],
[
-77.872404,
37.093574
],
[
-77.872357,
37.093439
],
[
-77.872311,
37.093304
],
[
-77.872264,
37.093169
],
[
-77.872219,
37.093034
],
[
-77.872173,
37.092898
],
[
-77.872128,
37.092763
],
[
-77.872083,
37.092627
],
[
-77.872039,
37.092492
],
[
-77.871995,
37.092356
],
[
-77.871951,
37.09222
],
[
-77.871907,
37.092084
],
[
-77.871864,
37.091949
],
[
-77.871821,
37.091813
],
[
-77.871779,
37.091677
],
[
-77.871737,
37.091541
],
[
-77.871695,
37.091405
],
[
-77.871654,
37.091268
],
[
-77.871613,
37.091132
],
[
-77.871572,
37.090996
],
[
-77.871532,
37.090859
],
[
-77.871492,
37.090723
],
[
-77.871452,
37.090586
],
[
-77.871413,
37.09045
],
[
-77.871374,
37.090313
],
[
-77.871335,
37.090176
],
[
-77.871296,
37.09004
],
[
-77.871258,
37.089903
],
[
-77.871221,
37.089766
],
[
-77.871184,
37.089629
],
[
-77.871147,
37.089492
],
[
-77.87111,
37.089355
],
[
-77.871074,
37.089218
],
[
-77.871038,
37.089081
],
[
-77.871002,
37.088943
],
[
-77.870967,
37.088806
],
[
-77.870932,
37.088669
],
[
-77.870897,
37.088531
],
[
-77.870863,
37.088394
],
[
-77.870829,
37.088256
],
[
-77.870796,
37.088119
],
[
-77.870762,
37.087981
],
[
-77.87073,
37.087843
],
[
-77.870697,
37.087706
],
[
-77.870665,
37.087568
],
[
-77.870633,
37.08743
],
[
-77.870602,
37.087292
],
[
-77.870571,
37.087154
],
[
-77.87054,
37.087016
],
[
-77.870509,
37.086878
],
[
-77.870479,
37.08674
],
[
-77.870449,
37.086602
],
[
-77.87042,
37.086464
],
[
-77.870391,
37.086325
],
[
-77.870362,
37.086187
],
[
-77.870334,
37.086049
],
[
-77.870306,
37.085911
],
[
-77.870278,
37.085772
],
[
-77.870251,
37.085634
],
[
-77.870224,
37.085495
],
[
-77.870197,
37.085357
],
[
-77.870171,
37.085218
],
[
-77.870145,
37.085079
],
[
-77.870119,
37.084941
],
[
-77.870094,
37.084802
],
[
-77.870069,
37.084663
],
[
-77.870045,
37.084524
],
[
-77.87002,
37.084386
],
[
-77.869996,
37.084247
],
[
-77.869973,
37.084108
],
[
-77.86995,
37.083969
],
[
-77.869927,
37.08383
],
[
-77.869904,
37.083691
],
[
-77.869882,
37.083552
],
[
-77.86986,
37.083413
],
[
-77.869839,
37.083274
],
[
-77.869818,
37.083135
],
[
-77.869797,
37.082995
],
[
-77.869777,
37.082856
],
[
-77.869757,
37.082717
],
[
-77.869737,
37.082578
],
[
-77.869718,
37.082438
],
[
-77.869699,
37.082299
],
[
-77.86968,
37.08216
],
[
-77.869662,
37.08202
],
[
-77.869644,
37.081881
],
[
-77.869626,
37.081741
],
[
-77.869609,
37.081602
],
[
-77.869592,
37.081462
],
[
-77.869575,
37.081323
],
[
-77.869559,
37.081183
],
[
-77.869543,
37.081044
],
[
-77.869528,
37.080904
],
[
-77.869513,
37.080764
],
[
-77.869498,
37.080625
],
[
-77.869483,
37.080485
],
[
-77.869469,
37.080345
],
[
-77.869455,
37.080205
],
[
-77.869442,
37.080066
],
[
-77.869429,
37.079926
],
[
-77.869416,
37.079786
],
[
-77.869404,
37.079646
],
[
-77.869392,
37.079506
],
[
-77.86938,
37.079367
],
[
-77.869369,
37.079227
],
[
-77.869358,
37.079087
],
[
-77.869347,
37.078947
],
[
-77.869337,
37.078807
],
[
-77.869327,
37.078667
],
[
-77.869317,
37.078527
],
[
-77.869308,
37.078387
],
[
-77.869299,
37.078247
],
[
-77.86929,
37.078107
],
[
-77.869282,
37.077967
],
[
-77.869274,
37.077827
],
[
-77.869267,
37.077687
],
[
-77.86926,
37.077547
],
[
-77.869253,
37.077407
],
[
-77.869246,
37.077267
],
[
-77.86924,
37.077127
],
[
-77.869235,
37.076986
],
[
-77.869229,
37.076846
],
[
-77.869224,
37.076706
],
[
-77.869219,
37.076566
],
[
-77.869215,
37.076426
],
[
-77.869211,
37.076286
],
[
-77.869207,
37.076146
],
[
-77.869204,
37.076006
],
[
-77.869201,
37.075865
],
[
-77.869199,
37.075725
],
[
-77.869196,
37.075585
],
[
-77.869194,
37.075445
],
[
-77.869193,
37.075305
],
[
-77.869192,
37.075165
],
[
-77.869191,
37.075024
],
[
-77.86919,
37.074884
],
[
-77.86919,
37.074744
],
[
-77.86919,
37.074604
],
[
-77.869191,
37.074464
],
[
-77.869192,
37.074323
],
[
-77.869193,
37.074183
],
[
-77.869195,
37.074043
],
[
-77.869197,
37.073903
],
[
-77.869199,
37.073763
],
[
-77.869202,
37.073623
],
[
-77.869205,
37.073482
],
[
-77.869208,
37.073342
],
[
-77.869212,
37.073202
],
[
-77.869216,
37.073062
],
[
-77.86922,
37.072922
],
[
-77.869225,
37.072782
],
[
-77.86923,
37.072642
],
[
-77.869235,
37.072502
],
[
-77.869241,
37.072361
],
[
-77.869247,
37.072221
],
[
-77.869254,
37.072081
],
[
-77.869261,
37.071941
],
[
-77.869268,
37.071801
],
[
-77.869275,
37.071661
],
[
-77.869283,
37.071521
],
[
-77.869291,
37.071381
],
[
-77.8693,
37.071241
],
[
-77.869309,
37.071101
],
[
-77.869318,
37.070961
],
[
-77.869328,
37.070821
],
[
-77.869338,
37.070681
],
[
-77.869348,
37.070541
],
[
-77.869359,
37.070401
],
[
-77.86937,
37.070261
],
[
-77.869381,
37.070122
],
[
-77.869393,
37.069982
],
[
-77.869405,
37.069842
],
[
-77.869418,
37.069702
],
[
-77.86943,
37.069562
],
[
-77.869443,
37.069422
],
[
-77.869457,
37.069283
],
[
-77.869471,
37.069143
],
[
-77.869485,
37.069003
],
[
-77.869499,
37.068863
],
[
-77.869514,
37.068724
],
[
-77.86953,
37.068584
],
[
-77.869545,
37.068445
],
[
-77.869561,
37.068305
],
[
-77.869577,
37.068165
],
[
-77.869594,
37.068026
],
[
-77.869611,
37.067886
],
[
-77.869628,
37.067747
],
[
-77.869646,
37.067607
],
[
-77.869664,
37.067468
],
[
-77.869682,
37.067329
],
[
-77.869701,
37.067189
],
[
-77.86972,
37.06705
],
[
-77.869739,
37.06691
],
[
-77.869759,
37.066771
],
[
-77.869779,
37.066632
],
[
-77.8698,
37.066493
],
[
-77.86982,
37.066354
],
[
-77.869842,
37.066214
],
[
-77.869863,
37.066075
],
[
-77.869885,
37.065936
],
[
-77.869907,
37.065797
],
[
-77.86993,
37.065658
],
[
-77.869952,
37.065519
],
[
-77.869976,
37.06538
],
[
-77.869999,
37.065241
],
[
-77.870023,
37.065102
],
[
-77.870047,
37.064964
],
[
-77.870072,
37.064825
],
[
-77.870097,
37.064686
],
[
-77.870122,
37.064547
],
[
-77.870148,
37.064409
],
[
-77.870174,
37.06427
],
[
-77.8702,
37.064132
],
[
-77.870227,
37.063993
],
[
-77.870254,
37.063855
],
[
-77.870281,
37.063716
],
[
-77.870309,
37.063578
],
[
-77.870337,
37.063439
],
[
-77.870365,
37.063301
],
[
-77.870394,
37.063163
],
[
-77.870423,
37.063024
],
[
-77.870453,
37.062886
],
[
-77.870482,
37.062748
],
[
-77.870513,
37.06261
],
[
-77.870543,
37.062472
],
[
-77.870574,
37.062334
],
[
-77.870605,
37.062196
],
[
-77.870637,
37.062058
],
[
-77.870668,
37.06192
],
[
-77.870701,
37.061783
],
[
-77.870733,
37.061645
],
[
-77.870766,
37.061507
],
[
-77.870799,
37.06137
],
[
-77.870833,
37.061232
],
[
-77.870867,
37.061095
],
[
-77.870901,
37.060957
],
[
-77.870936,
37.06082
],
[
-77.870971,
37.060682
],
[
-77.871006,
37.060545
],
[
-77.871041,
37.060408
],
[
-77.871077,
37.060271
],
[
-77.871114,
37.060133
],
[
-77.87115,
37.059996
],
[
-77.871187,
37.059859
],
[
-77.871225,
37.059722
],
[
-77.871262,
37.059586
],
[
-77.8713,
37.059449
],
[
-77.871339,
37.059312
],
[
-77.871377,
37.059175
],
[
-77.871416,
37.059039
],
[
-77.871456,
37.058902
],
[
-77.871496,
37.058765
],
[
-77.871536,
37.058629
],
[
-77.871576,
37.058493
],
[
-77.871617,
37.058356
],
[
-77.871658,
37.05822
],
[
-77.871699,
37.058084
],
[
-77.871741,
37.057948
],
[
-77.871783,
37.057812
],
[
-77.871826,
37.057676
],
[
-77.871868,
37.05754
],
[
-77.871912,
37.057404
],
[
-77.871955,
37.057268
],
[
-77.871999,
37.057132
],
[
-77.872043,
37.056997
],
[
-77.872087,
37.056861
],
[
-77.872132,
37.056726
],
[
-77.872177,
37.05659
],
[
-77.872223,
37.056455
],
[
-77.872269,
37.05632
],
[
-77.872315,
37.056184
],
[
-77.872361,
37.056049
],
[
-77.872408,
37.055914
],
[
-77.872455,
37.055779
],
[
-77.872503,
37.055644
],
[
-77.872551,
37.05551
],
[
-77.872599,
37.055375
],
[
-77.872647,
37.05524
],
[
-77.872696,
37.055106
],
[
-77.872745,
37.054971
],
[
-77.872795,
37.054837
],
[
-77.872845,
37.054702
],
[
-77.872895,
37.054568
],
[
-77.872946,
37.054434
],
[
-77.872996,
37.0543
],
[
-77.873048,
37.054166
],
[
-77.873099,
37.054032
],
[
-77.873151,
37.053898
],
[
-77.873203,
37.053764
],
[
-77.873256,
37.05363
],
[
-77.873309,
37.053497
],
[
-77.873362,
37.053363
],
[
-77.873415,
37.05323
],
[
-77.873469,
37.053096
],
[
-77.873523,
37.052963
],
[
-77.873578,
37.05283
],
[
-77.873633,
37.052697
],
[
-77.873688,
37.052564
],
[
-77.873743,
37.052431
],
[
-77.873799,
37.052298
],
[
-77.873856,
37.052165
],
[
-77.873912,
37.052033
],
[
-77.873969,
37.0519
],
[
-77.874026,
37.051767
],
[
-77.874084,
37.051635
],
[
-77.874141,
37.051503
],
[
-77.8742,
37.051371
],
[
-77.874258,
37.051239
],
[
-77.874317,
37.051107
],
[
-77.874376,
37.050975
],
[
-77.874436,
37.050843
],
[
-77.874495,
37.050711
],
[
-77.874556,
37.050579
],
[
-77.874616,
37.050448
],
[
-77.874677,
37.050316
],
[
-77.874738,
37.050185
],
[
-77.874799,
37.050054
],
[
-77.874861,
37.049923
],
[
-77.874923,
37.049792
],
[
-77.874986,
37.049661
],
[
-77.875048,
37.04953
],
[
-77.875112,
37.049399
],
[
-77.875175,
37.049269
],
[
-77.875239,
37.049138
],
[
-77.875303,
37.049008
],
[
-77.875367,
37.048877
],
[
-77.875432,
37.048747
],
[
-77.875497,
37.048617
],
[
-77.875562,
37.048487
],
[
-77.875628,
37.048357
],
[
-77.875694,
37.048227
],
[
-77.87576,
37.048097
],
[
-77.875827,
37.047968
],
[
-77.875894,
37.047838
],
[
-77.875961,
37.047709
],
[
-77.876029,
37.04758
],
[
-77.876097,
37.047451
],
[
-77.876165,
37.047321
],
[
-77.876234,
37.047193
],
[
-77.876303,
37.047064
],
[
-77.876372,
37.046935
],
[
-77.876441,
37.046806
],
[
-77.876511,
37.046678
],
[
-77.876581,
37.046549
],
[
-77.876652,
37.046421
],
[
-77.876723,
37.046293
],
[
-77.876794,
37.046165
],
[
-77.876865,
37.046037
],
[
-77.876937,
37.045909
],
[
-77.877009,
37.045782
],
[
-77.877082,
37.045654
],
[
-77.877155,
37.045526
],
[
-77.877228,
37.045399
],
[
-77.877301,
37.045272
],
[
-77.877375,
37.045145
],
[
-77.877449,
37.045018
],
[
-77.877523,
37.044891
],
[
-77.877598,
37.044764
],
[
-77.877673,
37.044637
],
[
-77.877748,
37.044511
],
[
-77.877824,
37.044385
],
[
-77.877899,
37.044258
],
[
-77.877976,
37.044132
],
[
-77.878052,
37.044006
],
[
-77.878129,
37.04388
],
[
-77.878206,
37.043754
],
[
-77.878284,
37.043629
],
[
-77.878362,
37.043503
],
[
-77.87844,
37.043378
],
[
-77.878518,
37.043252
],
[
-77.878597,
37.043127
],
[
-77.878676,
37.043002
],
[
-77.878755,
37.042877
],
[
-77.878835,
37.042752
],
[
-77.878915,
37.042628
],
[
-77.878995,
37.042503
],
[
-77.879076,
37.042379
],
[
-77.879157,
37.042255
],
[
-77.879238,
37.04213
],
[
-77.879319,
37.042006
],
[
-77.879401,
37.041883
],
[
-77.879483,
37.041759
],
[
-77.879566,
37.041635
],
[
-77.879649,
37.041512
],
[
-77.879732,
37.041388
],
[
-77.879815,
37.041265
],
[
-77.879899,
37.041142
],
[
-77.879983,
37.041019
],
[
-77.880067,
37.040896
],
[
-77.880152,
37.040774
],
[
-77.880237,
37.040651
],
[
-77.880322,
37.040529
],
[
-77.880407,
37.040406
],
[
-77.880493,
37.040284
],
[
-77.880579,
37.040162
],
[
-77.880666,
37.04004
],
[
-77.880752,
37.039919
],
[
-77.880839,
37.039797
],
[
-77.880927,
37.039676
],
[
-77.881014,
37.039554
],
[
-77.881102,
37.039433
],
[
-77.881191,
37.039312
],
[
-77.881279,
37.039191
],
[
-77.881368,
37.039071
],
[
-77.881457,
37.03895
],
[
-77.881547,
37.03883
],
[
-77.881636,
37.038709
],
[
-77.881726,
37.038589
],
[
-77.881817,
37.038469
],
[
-77.881907,
37.038349
],
[
-77.881998,
37.038229
],
[
-77.88209,
37.03811
],
[
-77.882181,
37.03799
],
[
-77.882273,
37.037871
],
[
-77.882365,
37.037752
],
[
-77.882458,
37.037633
],
[
-77.88255,
37.037514
],
[
-77.882643,
37.037396
],
[
-77.882737,
37.037277
],
[
-77.88283,
37.037159
],
[
-77.882924,
37.03704
],
[
-77.883018,
37.036922
],
[
-77.883113,
37.036804
],
[
-77.883208,
37.036687
],
[
-77.883303,
37.036569
],
[
-77.883398,
37.036451
],
[
-77.883494,
37.036334
],
[
-77.88359,
37.036217
],
[
-77.883686,
37.0361
],
[
-77.883783,
37.035983
],
[
-77.883879,
37.035866
],
[
-77.883977,
37.03575
],
[
-77.884074,
37.035633
],
[
-77.884172,
37.035517
],
[
-77.88427,
37.035401
],
[
-77.884368,
37.035285
],
[
-77.884467,
37.035169
],
[
-77.884565,
37.035054
],
[
-77.884665,
37.034938
],
[
-77.884764,
37.034823
],
[
-77.884864,
37.034708
],
[
-77.884964,
37.034593
],
[
-77.885064,
37.034478
],
[
-77.885165,
37.034363
],
[
-77.885266,
37.034249
],
[
-77.885367,
37.034134
],
[
-77.885468,
37.03402
],
[
-77.88557,
37.033906
],
[
-77.885672,
37.033792
],
[
-77.885774,
37.033679
],
[
-77.885877,
37.033565
],
[
-77.88598,
37.033452
],
[
-77.886083,
37.033339
],
[
-77.886186,
37.033226
],
[
-77.88629,
37.033113
],
[
-77.886394,
37.033
],
[
-77.886498,
37.032888
],
[
-77.886603,
37.032775
],
[
-77.886708,
37.032663
],
[
-77.886813,
37.032551
],
[
-77.886918,
37.032439
],
[
-77.887024,
37.032327
],
[
-77.88713,
37.032216
],
[
-77.887236,
37.032105
],
[
-77.887342,
37.031993
],
[
-77.887449,
37.031882
],
[
-77.887556,
37.031772
],
[
-77.887664,
37.031661
],
[
-77.887771,
37.03155
],
[
-77.887879,
37.03144
],
[
-77.887987,
37.03133
],
[
-77.888096,
37.03122
],
[
-77.888204,
37.03111
],
[
-77.888313,
37.031001
],
[
-77.888423,
37.030891
],
[
-77.888532,
37.030782
],
[
-77.888642,
37.030673
],
[
-77.888752,
37.030564
],
[
-77.888862,
37.030455
],
[
-77.888973,
37.030347
],
[
-77.889084,
37.030238
],
[
-77.889195,
37.03013
],
[
-77.889306,
37.030022
],
[
-77.889418,
37.029914
],
[
-77.88953,
37.029806
],
[
-77.889642,
37.029699
],
[
-77.889755,
37.029592
],
[
-77.889867,
37.029484
],
[
-77.88998,
37.029378
],
[
-77.890094,
37.029271
],
[
-77.890207,
37.029164
],
[
-77.890321,
37.029058
],
[
-77.890435,
37.028952
],
[
-77.89055,
37.028845
],
[
-77.890664,
37.02874
],
[
-77.890779,
37.028634
],
[
-77.890894,
37.028528
],
[
-77.89101,
37.028423
],
[
-77.891125,
37.028318
],
[
-77.891241,
37.028213
],
[
-77.891357,
37.028108
],
[
-77.891474,
37.028004
],
[
-77.891591,
37.027899
],
[
-77.891708,
37.027795
],
[
-77.891825,
37.027691
],
[
-77.891942,
37.027587
],
[
-77.89206,
37.027484
],
[
-77.892178,
37.02738
],
[
-77.892296,
37.027277
],
[
-77.892415,
37.027174
],
[
-77.892534,
37.027071
],
[
-77.892653,
37.026969
],
[
-77.892772,
37.026866
],
[
-77.892891,
37.026764
],
[
-77.893011,
37.026662
],
[
-77.893131,
37.02656
],
[
-77.893252,
37.026458
],
[
-77.893372,
37.026357
],
[
-77.893493,
37.026255
],
[
-77.893614,
37.026154
],
[
-77.893735,
37.026053
],
[
-77.893857,
37.025952
],
[
-77.893979,
37.025852
],
[
-77.894101,
37.025751
],
[
-77.894223,
37.025651
],
[
-77.894346,
37.025551
],
[
-77.894468,
37.025452
],
[
-77.894591,
37.025352
],
[
-77.894715,
37.025253
],
[
-77.894838,
37.025153
],
[
-77.894962,
37.025054
],
[
-77.895086,
37.024956
],
[
-77.89521,
37.024857
],
[
-77.895335,
37.024759
],
[
-77.89546,
37.024661
],
[
-77.895585,
37.024563
],
[
-77.89571,
37.024465
],
[
-77.895836,
37.024367
],
[
-77.895961,
37.02427
],
[
-77.896087,
37.024173
],
[
-77.896214,
37.024076
],
[
-77.89634,
37.023979
],
[
-77.896467,
37.023882
],
[
-77.896594,
37.023786
],
[
-77.896721,
37.02369
],
[
-77.896848,
37.023594
],
[
-77.896976,
37.023498
],
[
-77.897104,
37.023403
],
[
-77.897232,
37.023307
],
[
-77.897361,
37.023212
],
[
-77.897489,
37.023117
],
[
-77.897618,
37.023022
],
[
-77.897747,
37.022928
],
[
-77.897877,
37.022834
],
[
-77.898006,
37.02274
],
[
-77.898136,
37.022646
],
[
-77.898266,
37.022552
],
[
-77.898396,
37.022458
],
[
-77.898527,
37.022365
],
[
-77.898658,
37.022272
],
[
-77.898789,
37.022179
],
[
-77.89892,
37.022087
],
[
-77.899051,
37.021994
],
[
-77.899183,
37.021902
],
[
-77.899315,
37.02181
],
[
-77.899447,
37.021718
],
[
-77.899579,
37.021627
],
[
-77.899712,
37.021535
],
[
-77.899845,
37.021444
],
[
-77.899978,
37.021353
],
[
-77.900111,
37.021262
],
[
-77.900244,
37.021172
],
[
-77.900378,
37.021082
],
[
-77.900512,
37.020991
],
[
-77.900646,
37.020902
],
[
-77.900781,
37.020812
],
[
-77.900915,
37.020722
],
[
-77.90105,
37.020633
],
[
-77.901185,
37.020544
],
[
-77.90132,
37.020455
],
[
-77.901456,
37.020367
],
[
-77.901592,
37.020278
],
[
-77.901727,
37.02019
],
[
-77.901864,
37.020102
],
[
-77.902,
37.020015
],
[
-77.902137,
37.019927
],
[
-77.902273,
37.01984
],
[
-77.90241,
37.019753
],
[
-77.902548,
37.019666
],
[
-77.902685,
37.019579
],
[
-77.902823,
37.019493
],
[
-77.902961,
37.019407
],
[
-77.903099,
37.019321
],
[
-77.903237,
37.019235
],
[
-77.903376,
37.01915
],
[
-77.903514,
37.019064
],
[
-77.903653,
37.018979
],
[
-77.903792,
37.018895
],
[
-77.903932,
37.01881
],
[
-77.904071,
37.018726
],
[
-77.904211,
37.018641
],
[
-77.904351,
37.018557
],
[
-77.904491,
37.018474
],
[
-77.904632,
37.01839
],
[
-77.904772,
37.018307
],
[
-77.904913,
37.018224
],
[
-77.905054,
37.018141
],
[
-77.905196,
37.018058
],
[
-77.905337,
37.017976
],
[
-77.905479,
37.017894
],
[
-77.905621,
37.017812
],
[
-77.905763,
37.01773
],
[
-77.905905,
37.017649
],
[
-77.906047,
37.017568
],
[
-77.90619,
37.017487
],
[
-77.906333,
37.017406
],
[
-77.906476,
37.017325
],
[
-77.906619,
37.017245
],
[
-77.906763,
37.017165
],
[
-77.906906,
37.017085
],
[
-77.90705,
37.017006
],
[
-77.907194,
37.016926
],
[
-77.907339,
37.016847
],
[
-77.907483,
37.016768
],
[
-77.907628,
37.016689
],
[
-77.907773,
37.016611
],
[
-77.907918,
37.016533
],
[
-77.908063,
37.016455
],
[
-77.908208,
37.016377
],
[
-77.908354,
37.016299
],
[
-77.9085,
37.016222
],
[
-77.908646,
37.016145
],
[
-77.908792,
37.016068
],
[
-77.908939,
37.015992
],
[
-77.909085,
37.015915
],
[
-77.909232,
37.015839
],
[
-77.909379,
37.015763
],
[
-77.909526,
37.015688
],
[
-77.909673,
37.015612
],
[
-77.909821,
37.015537
],
[
-77.909969,
37.015462
],
[
-77.910117,
37.015387
],
[
-77.910265,
37.015313
],
[
-77.910413,
37.015239
],
[
-77.910561,
37.015165
],
[
-77.91071,
37.015091
],
[
-77.910859,
37.015017
],
[
-77.911008,
37.014944
],
[
-77.911157,
37.014871
],
[
-77.911306,
37.014798
],
[
-77.911456,
37.014726
],
[
-77.911606,
37.014653
],
[
-77.911756,
37.014581
],
[
-77.911906,
37.014509
],
[
-77.912056,
37.014438
],
[
-77.912207,
37.014366
],
[
-77.912357,
37.014295
],
[
-77.912508,
37.014224
],
[
-77.912659,
37.014154
],
[
-77.91281,
37.014083
],
[
-77.912961,
37.014013
],
[
-77.913113,
37.013943
],
[
-77.913265,
37.013874
],
[
-77.913417,
37.013804
],
[
-77.913569,
37.013735
],
[
-77.913721,
37.013666
],
[
-77.913873,
37.013597
],
[
-77.914026,
37.013529
],
[
-77.914178,
37.013461
],
[
-77.914331,
37.013393
],
[
-77.914484,
37.013325
],
[
-77.914638,
37.013258
],
[
-77.914791,
37.01319
],
[
-77.914945,
37.013123
],
[
-77.915098,
37.013057
],
[
-77.915252,
37.01299
],
[
-77.915406,
37.012924
],
[
-77.91556,
37.012858
],
[
-77.915715,
37.012792
],
[
-77.915869,
37.012727
],
[
-77.916024,
37.012661
],
[
-77.916179,
37.012596
],
[
-77.916334,
37.012532
],
[
-77.916489,
37.012467
],
[
-77.916645,
37.012403
],
[
-77.9168,
37.012339
],
[
-77.916956,
37.012275
],
[
-77.917112,
37.012212
],
[
-77.917268,
37.012148
],
[
-77.917424,
37.012085
],
[
-77.91758,
37.012023
],
[
-77.917736,
37.01196
],
[
-77.917893,
37.011898
],
[
-77.91805,
37.011836
],
[
-77.918207,
37.011774
],
[
-77.918364,
37.011713
],
[
-77.918521,
37.011651
],
[
-77.918678,
37.01159
],
[
-77.918836,
37.01153
],
[
-77.918994,
37.011469
],
[
-77.919152,
37.011409
],
[
-77.91931,
37.011349
],
[
-77.919468,
37.011289
],
[
-77.919626,
37.01123
],
[
-77.919784,
37.01117
],
[
-77.919943,
37.011111
],
[
-77.920102,
37.011053
],
[
-77.920261,
37.010994
],
[
-77.92042,
37.010936
],
[
-77.920579,
37.010878
],
[
-77.920738,
37.01082
],
[
-77.920897,
37.010763
],
[
-77.921057,
37.010706
],
[
-77.921217,
37.010649
],
[
-77.921377,
37.010592
],
[
-77.921537,
37.010536
],
[
-77.921697,
37.01048
],
[
-77.921857,
37.010424
],
[
-77.922018,
37.010368
],
[
-77.922178,
37.010313
],
[
-77.922339,
37.010258
],
[
-77.9225,
37.010203
],
[
-77.922661,
37.010148
],
[
-77.922822,
37.010094
],
[
-77.922983,
37.01004
],
[
-77.923144,
37.009986
],
[
-77.923306,
37.009932
],
[
-77.923468,
37.009879
],
[
-77.923629,
37.009826
],
[
-77.923791,
37.009773
],
[
-77.923953,
37.00972
],
[
-77.924116,
37.009668
],
[
-77.924278,
37.009616
],
[
-77.92444,
37.009564
],
[
-77.924603,
37.009513
],
[
-77.924766,
37.009462
],
[
-77.924928,
37.009411
],
[
-77.925091,
37.00936
],
[
-77.925254,
37.009309
],
[
-77.925418,
37.009259
],
[
-77.925581,
37.009209
],
[
-77.925744,
37.00916
],
[
-77.925908,
37.00911
],
[
-77.926072,
37.009061
],
[
-77.926235,
37.009012
],
[
-77.926399,
37.008963
],
[
-77.926563,
37.008915
],
[
-77.926728,
37.008867
],
[
-77.926892,
37.008819
],
[
-77.927056,
37.008772
],
[
-77.927221,
37.008724
],
[
-77.927386,
37.008677
],
[
-77.92755,
37.00863
],
[
-77.927715,
37.008584
],
[
-77.92788,
37.008538
],
[
-77.928045,
37.008492
],
[
-77.928211,
37.008446
],
[
-77.928376,
37.0084
],
[
-77.928541,
37.008355
],
[
-77.928707,
37.00831
],
[
-77.928873,
37.008266
],
[
-77.929038,
37.008221
],
[
-77.929204,
37.008177
],
[
-77.92937,
37.008133
],
[
-77.929536,
37.00809
],
[
-77.929703,
37.008046
],
[
-77.929869,
37.008003
],
[
-77.930035,
37.00796
],
[
-77.930202,
37.007918
],
[
-77.930369,
37.007876
],
[
-77.930535,
37.007834
],
[
-77.930702,
37.007792
],
[
-77.930869,
37.00775
],
[
-77.931036,
37.007709
],
[
-77.931203,
37.007668
],
[
-77.931371,
37.007628
],
[
-77.931538,
37.007587
],
[
-77.931706,
37.007547
],
[
-77.931873,
37.007507
],
[
-77.932041,
37.007468
],
[
-77.932209,
37.007428
],
[
-77.932376,
37.007389
],
[
-77.932544,
37.00735
],
[
-77.932712,
37.007312
],
[
-77.932881,
37.007274
],
[
-77.933049,
37.007236
],
[
-77.933217,
37.007198
],
[
-77.933386,
37.007161
],
[
-77.933554,
37.007123
],
[
-77.933723,
37.007087
],
[
-77.933892,
37.00705
],
[
-77.93406,
37.007014
],
[
-77.934229,
37.006977
],
[
-77.934398,
37.006942
],
[
-77.934567,
37.006906
],
[
-77.934736,
37.006871
],
[
-77.934906,
37.006836
],
[
-77.935075,
37.006801
],
[
-77.935245,
37.006767
],
[
-77.935414,
37.006732
],
[
-77.935584,
37.006699
],
[
-77.935753,
37.006665
],
[
-77.935923,
37.006632
],
[
-77.936093,
37.006598
],
[
-77.936263,
37.006566
],
[
-77.936433,
37.006533
],
[
-77.936603,
37.006501
],
[
-77.936773,
37.006469
],
[
-77.936943,
37.006437
],
[
-77.937114,
37.006406
],
[
-77.937284,
37.006374
],
[
-77.937455,
37.006343
],
[
-77.937625,
37.006313
],
[
-77.937796,
37.006282
],
[
-77.937966,
37.006252
],
[
-77.938137,
37.006222
],
[
-77.938308,
37.006193
],
[
-77.938479,
37.006164
],
[
-77.93865,
37.006135
],
[
-77.938821,
37.006106
],
[
-77.938992,
37.006077
],
[
-77.939163,
37.006049
],
[
-77.939335,
37.006021
],
[
-77.939506,
37.005994
],
[
-77.939678,
37.005966
],
[
-77.939849,
37.005939
],
[
-77.940021,
37.005913
],
[
-77.940192,
37.005886
],
[
-77.940364,
37.00586
],
[
-77.940536,
37.005834
],
[
-77.940708,
37.005808
],
[
-77.940879,
37.005783
],
[
-77.941051,
37.005757
],
[
-77.941223,
37.005733
],
[
-77.941395,
37.005708
],
[
-77.941568,
37.005684
],
[
-77.94174,
37.00566
],
[
-77.941912,
37.005636
],
[
-77.942084,
37.005612
],
[
-77.942257,
37.005589
],
[
-77.942429,
37.005566
],
[
-77.942602,
37.005543
],
[
-77.942774,
37.005521
],
[
-77.942947,
37.005499
],
[
-77.943119,
37.005477
],
[
-77.943292,
37.005456
],
[
-77.943465,
37.005434
],
[
-77.943638,
37.005413
],
[
-77.943811,
37.005393
],
[
-77.943983,
37.005372
],
[
-77.944156,
37.005352
],
[
-77.944329,
37.005332
],
[
-77.944502,
37.005312
],
[
-77.944676,
37.005293
],
[
-77.944849,
37.005274
],
[
-77.945022,
37.005255
],
[
-77.945195,
37.005237
],
[
-77.945369,
37.005218
],
[
-77.945542,
37.0052
],
[
-77.945715,
37.005183
],
[
-77.945889,
37.005165
],
[
-77.946062,
37.005148
],
[
-77.946236,
37.005131
],
[
-77.946409,
37.005115
],
[
-77.946583,
37.005099
],
[
-77.946756,
37.005083
],
[
-77.94693,
37.005067
],
[
-77.947104,
37.005051
],
[
-77.947278,
37.005036
],
[
-77.947451,
37.005021
],
[
-77.947625,
37.005007
],
[
-77.947799,
37.004992
],
[
-77.947973,
37.004978
],
[
-77.948147,
37.004964
],
[
-77.948321,
37.004951
],
[
-77.948495,
37.004938
],
[
-77.948669,
37.004925
],
[
-77.948843,
37.004912
],
[
-77.949017,
37.0049
],
[
-77.949191,
37.004888
],
[
-77.949365,
37.004876
],
[
-77.94954,
37.004864
],
[
-77.949714,
37.004853
],
[
-77.949888,
37.004842
],
[
-77.950062,
37.004831
],
[
-77.950237,
37.004821
],
[
-77.950411,
37.004811
],
[
-77.950585,
37.004801
],
[
-77.95076,
37.004791
],
[
-77.950934,
37.004782
],
[
-77.951109,
37.004773
],
[
-77.951283,
37.004764
],
[
-77.951457,
37.004756
],
[
-77.951632,
37.004747
],
[
-77.951806,
37.004739
],
[
-77.951981,
37.004732
],
[
-77.952155,
37.004724
],
[
-77.95233,
37.004717
],
[
-77.952505,
37.004711
],
[
-77.952679,
37.004704
],
[
-77.952854,
37.004698
],
[
-77.953028,
37.004692
],
[
-77.953203,
37.004686
],
[
-77.953378,
37.004681
],
[
-77.953552,
37.004676
],
[
-77.953727,
37.004671
],
[
-77.953902,
37.004666
],
[
-77.954076,
37.004662
],
[
-77.954251,
37.004658
],
[
-77.954426,
37.004654
],
[
-77.954601,
37.004651
],
[
-77.954775,
37.004648
],
[
-77.95495,
37.004645
],
[
-77.955125,
37.004642
],
[
-77.9553,
37.00464
],
[
-77.955474,
37.004638
],
[
-77.955649,
37.004636
],
[
-77.955824,
37.004634
],
[
-77.955999,
37.004633
],
[
-77.956174,
37.004632
],
[
-77.956348,
37.004632
],
[
-77.956523,
37.004631
],
[
-77.956698,
37.004631
],
[
-77.956873,
37.004631
],
[
-77.957047,
37.004632
],
[
-77.957222,
37.004633
],
[
-77.957397,
37.004634
],
[
-77.957572,
37.004635
],
[
-77.957747,
37.004637
],
[
-77.957921,
37.004638
],
[
-77.958096,
37.004641
],
[
-77.958271,
37.004643
],
[
-77.958446,
37.004646
],
[
-77.95862,
37.004649
],
[
-77.958795,
37.004652
],
[
-77.95897,
37.004656
],
[
-77.959144,
37.004659
],
[
-77.959319,
37.004664
],
[
-77.959494,
37.004668
],
[
-77.959669,
37.004673
],
[
-77.959843,
37.004678
],
[
-77.960018,
37.004683
],
[
-77.960193,
37.004688
],
[
-77.960367,
37.004694
],
[
-77.960542,
37.0047
],
[
-77.960716,
37.004707
],
[
-77.960891,
37.004713
],
[
-77.961066,
37.00472
],
[
-77.96124,
37.004727
],
[
-77.961415,
37.004735
],
[
-77.961589,
37.004743
],
[
-77.961764,
37.004751
],
[
-77.961938,
37.004759
],
[
-77.962113,
37.004768
],
[
-77.962287,
37.004776
],
[
-77.962461,
37.004786
],
[
-77.962636,
37.004795
],
[
-77.96281,
37.004805
],
[
-77.962985,
37.004815
],
[
-77.963159,
37.004825
],
[
-77.963333,
37.004836
],
[
-77.963507,
37.004846
],
[
-77.963682,
37.004857
],
[
-77.963856,
37.004869
],
[
-77.96403,
37.004881
],
[
-77.964204,
37.004892
],
[
-77.964378,
37.004905
],
[
-77.964552,
37.004917
],
[
-77.964726,
37.00493
],
[
-77.9649,
37.004943
],
[
-77.965074,
37.004956
],
[
-77.965248,
37.00497
],
[
-77.965422,
37.004984
],
[
-77.965596,
37.004998
],
[
-77.96577,
37.005013
],
[
-77.965944,
37.005027
],
[
-77.966118,
37.005042
],
[
-77.966291,
37.005058
],
[
-77.966465,
37.005073
],
[
-77.966639,
37.005089
],
[
-77.966812,
37.005105
],
[
-77.966986,
37.005122
],
[
-77.96716,
37.005138
],
[
-77.967333,
37.005155
],
[
-77.967506,
37.005172
],
[
-77.96768,
37.00519
],
[
-77.967853,
37.005208
],
[
-77.968027,
37.005226
],
[
-77.9682,
37.005244
],
[
-77.968373,
37.005263
],
[
-77.968546,
37.005282
],
[
-77.968719,
37.005301
],
[
-77.968893,
37.00532
],
[
-77.969066,
37.00534
],
[
-77.969239,
37.00536
],
[
-77.969412,
37.00538
],
[
-77.969584,
37.005401
],
[
-77.969757,
37.005422
],
[
-77.96993,
37.005443
],
[
-77.970103,
37.005464
],
[
-77.970275,
37.005486
],
[
-77.970448,
37.005508
],
[
-77.970621,
37.00553
],
[
-77.970793,
37.005553
],
[
-77.970966,
37.005575
],
[
-77.971138,
37.005599
],
[
-77.97131,
37.005622
],
[
-77.971483,
37.005645
],
[
-77.971655,
37.005669
],
[
-77.971827,
37.005694
],
[
-77.971999,
37.005718
],
[
-77.972171,
37.005743
],
[
-77.972343,
37.005768
],
[
-77.972515,
37.005793
],
[
-77.972687,
37.005819
],
[
-77.972859,
37.005844
],
[
-77.973031,
37.00587
],
[
-77.973202,
37.005897
],
[
-77.973374,
37.005923
],
[
-77.973545,
37.00595
],
[
-77.973717,
37.005978
],
[
-77.973888,
37.006005
],
[
-77.97406,
37.006033
],
[
-77.974231,
37.006061
],
[
-77.974402,
37.006089
],
[
-77.974573,
37.006118
],
[
-77.974744,
37.006146
],
[
-77.974915,
37.006176
],
[
-77.975086,
37.006205
],
[
-77.975257,
37.006235
],
[
-77.975428,
37.006265
],
[
-77.975598,
37.006295
],
[
-77.975769,
37.006325
],
[
-77.975939,
37.006356
],
[
-77.97611,
37.006387
],
[
-77.97628,
37.006418
],
[
-77.976451,
37.00645
],
[
-77.976621,
37.006482
],
[
-77.976791,
37.006514
],
[
-77.976961,
37.006546
],
[
-77.977131,
37.006579
],
[
-77.977301,
37.006612
],
[
-77.977471,
37.006645
],
[
-77.97764,
37.006679
],
[
-77.97781,
37.006712
],
[
-77.97798,
37.006746
],
[
-77.978149,
37.006781
],
[
-77.978318,
37.006815
],
[
-77.978488,
37.00685
],
[
-77.978657,
37.006885
],
[
-77.978826,
37.006921
],
[
-77.978995,
37.006956
],
[
-77.979164,
37.006992
],
[
-77.979333,
37.007028
],
[
-77.979502,
37.007065
],
[
-77.97967,
37.007102
],
[
-77.979839,
37.007139
],
[
-77.980007,
37.007176
],
[
-77.980176,
37.007213
],
[
-77.980344,
37.007251
],
[
-77.980512,
37.007289
],
[
-77.98068,
37.007328
],
[
-77.980849,
37.007366
],
[
-77.981016,
37.007405
],
[
-77.981184,
37.007444
],
[
-77.981352,
37.007484
],
[
-77.98152,
37.007523
],
[
-77.981687,
37.007563
],
[
-77.981855,
37.007604
],
[
-77.982022,
37.007644
],
[
-77.982189,
37.007685
],
[
-77.982356,
37.007726
],
[
-77.982523,
37.007767
],
[
-77.98269,
37.007809
],
[
-77.982857,
37.007851
],
[
-77.983024,
37.007893
],
[
-77.98319,
37.007935
],
[
-77.983357,
37.007978
],
[
-77.983523,
37.008021
],
[
-77.98369,
37.008064
],
[
-77.983856,
37.008107
],
[
-77.984022,
37.008151
],
[
-77.984188,
37.008195
],
[
-77.984354,
37.008239
],
[
-77.984519,
37.008284
],
[
-77.984685,
37.008329
],
[
-77.984851,
37.008374
],
[
-77.985016,
37.008419
],
[
-77.985181,
37.008465
],
[
-77.985346,
37.00851
],
[
-77.985512,
37.008556
],
[
-77.985677,
37.008603
],
[
-77.985841,
37.008649
],
[
-77.986006,
37.008696
],
[
-77.986171,
37.008744
],
[
-77.986335,
37.008791
],
[
-77.9865,
37.008839
],
[
-77.986664,
37.008887
],
[
-77.986828,
37.008935
],
[
-77.986992,
37.008983
],
[
-77.987156,
37.009032
],
[
-77.98732,
37.009081
],
[
-77.987483,
37.00913
],
[
-77.987647,
37.00918
],
[
-77.98781,
37.00923
],
[
-77.987973,
37.00928
],
[
-77.988137,
37.00933
],
[
-77.9883,
37.009381
],
[
-77.988462,
37.009431
],
[
-77.988625,
37.009482
],
[
-77.988788,
37.009534
],
[
-77.98895,
37.009585
],
[
-77.989113,
37.009637
],
[
-77.989275,
37.009689
],
[
-77.989437,
37.009742
],
[
-77.989599,
37.009794
],
[
-77.989761,
37.009847
],
[
-77.989923,
37.009901
],
[
-77.990084,
37.009954
],
[
-77.990246,
37.010008
],
[
-77.990407,
37.010062
],
[
-77.990568,
37.010116
],
[
-77.990729,
37.01017
],
[
-77.99089,
37.010225
],
[
-77.991051,
37.01028
],
[
-77.991212,
37.010335
],
[
-77.991372,
37.010391
],
[
-77.991533,
37.010446
],
[
-77.991693,
37.010502
],
[
-77.991853,
37.010559
],
[
-77.992013,
37.010615
],
[
-77.992173,
37.010672
],
[
-77.992332,
37.010729
],
[
-77.992492,
37.010786
],
[
-77.992651,
37.010844
],
[
-77.992811,
37.010902
],
[
-77.99297,
37.01096
],
[
-77.993129,
37.011018
],
[
-77.993288,
37.011077
],
[
-77.993446,
37.011135
],
[
-77.993605,
37.011195
],
[
-77.993763,
37.011254
],
[
-77.993921,
37.011313
],
[
-77.994079,
37.011373
],
[
-77.994237,
37.011433
],
[
-77.994395,
37.011494
],
[
-77.994553,
37.011554
],
[
-77.99471,
37.011615
],
[
-77.994867,
37.011676
],
[
-77.995025,
37.011738
],
[
-77.995182,
37.011799
],
[
-77.995339,
37.011861
],
[
-77.995495,
37.011923
],
[
-77.995652,
37.011986
],
[
-77.995808,
37.012048
],
[
-77.995964,
37.012111
],
[
-77.996121,
37.012174
],
[
-77.996276,
37.012238
],
[
-77.996432,
37.012301
],
[
-77.996588,
37.012365
],
[
-77.996743,
37.012429
],
[
-77.996899,
37.012493
],
[
-77.997054,
37.012558
],
[
-77.997209,
37.012623
],
[
-77.997363,
37.012688
],
[
-77.997518,
37.012753
],
[
-77.997673,
37.012819
],
[
-77.997827,
37.012885
],
[
-77.997981,
37.012951
],
[
-77.998135,
37.013017
],
[
-77.998289,
37.013084
],
[
-77.998443,
37.013151
],
[
-77.998596,
37.013218
],
[
-77.998749,
37.013285
],
[
-77.998902,
37.013353
],
[
-77.999055,
37.01342
],
[
-77.999208,
37.013488
],
[
-77.999361,
37.013557
],
[
-77.999513,
37.013625
],
[
-77.999666,
37.013694
],
[
-77.999818,
37.013763
],
[
-77.99997,
37.013832
],
[
-78.000122,
37.013902
],
[
-78.000273,
37.013972
],
[
-78.000425,
37.014042
],
[
-78.000576,
37.014112
],
[
-78.000727,
37.014183
],
[
-78.000878,
37.014253
],
[
-78.001029,
37.014324
],
[
-78.001179,
37.014395
],
[
-78.00133,
37.014467
],
[
-78.00148,
37.014539
],
[
-78.00163,
37.014611
],
[
-78.00178,
37.014683
],
[
-78.001929,
37.014755
],
[
-78.002079,
37.014828
],
[
-78.002228,
37.014901
],
[
-78.002377,
37.014974
],
[
-78.002526,
37.015047
],
[
-78.002675,
37.015121
],
[
-78.002824,
37.015195
],
[
-78.002972,
37.015269
],
[
-78.00312,
37.015343
],
[
-78.003268,
37.015418
],
[
-78.003416,
37.015493
],
[
-78.003564,
37.015568
],
[
-78.003711,
37.015643
],
[
-78.003858,
37.015718
],
[
-78.004006,
37.015794
],
[
-78.004152,
37.01587
],
[
-78.004299,
37.015946
],
[
-78.004446,
37.016023
],
[
-78.004592,
37.016099
],
[
-78.004738,
37.016176
],
[
-78.004884,
37.016254
],
[
-78.00503,
37.016331
],
[
-78.005175,
37.016409
],
[
-78.005321,
37.016486
],
[
-78.005466,
37.016565
],
[
-78.005611,
37.016643
],
[
-78.005756,
37.016721
],
[
-78.0059,
37.0168
],
[
-78.006045,
37.016879
],
[
-78.006189,
37.016959
],
[
-78.006333,
37.017038
],
[
-78.006477,
37.017118
],
[
-78.00662,
37.017198
],
[
-78.006764,
37.017278
],
[
-78.006907,
37.017358
],
[
-78.00705,
37.017439
],
[
-78.007193,
37.01752
],
[
-78.007335,
37.017601
],
[
-78.007478,
37.017682
],
[
-78.00762,
37.017764
],
[
-78.007762,
37.017845
],
[
-78.007904,
37.017927
],
[
-78.008045,
37.01801
],
[
-78.008186,
37.018092
],
[
-78.008328,
37.018175
],
[
-78.008469,
37.018258
],
[
-78.008609,
37.018341
],
[
-78.00875,
37.018424
],
[
-78.00889,
37.018508
],
[
-78.00903,
37.018592
],
[
-78.00917,
37.018676
],
[
-78.00931,
37.01876
],
[
-78.009449,
37.018844
],
[
-78.009589,
37.018929
],
[
-78.009728,
37.019014
],
[
-78.009867,
37.019099
],
[
-78.010005,
37.019185
],
[
-78.010144,
37.01927
],
[
-78.010282,
37.019356
],
[
-78.01042,
37.019442
],
[
-78.010558,
37.019528
],
[
-78.010695,
37.019615
],
[
-78.010833,
37.019701
],
[
-78.01097,
37.019788
],
[
-78.011107,
37.019876
],
[
-78.011244,
37.019963
],
[
-78.01138,
37.02005
],
[
-78.011516,
37.020138
],
[
-78.011652,
37.020226
],
[
-78.011788,
37.020315
],
[
-78.011924,
37.020403
],
[
-78.012059,
37.020492
],
[
-78.012195,
37.020581
],
[
-78.012329,
37.02067
],
[
-78.012464,
37.020759
],
[
-78.012599,
37.020849
],
[
-78.012733,
37.020938
],
[
-78.012867,
37.021028
],
[
-78.013001,
37.021118
],
[
-78.013135,
37.021209
],
[
-78.013268,
37.021299
],
[
-78.013401,
37.02139
],
[
-78.013534,
37.021481
],
[
-78.013667,
37.021572
],
[
-78.013799,
37.021664
],
[
-78.013932,
37.021756
],
[
-78.014064,
37.021848
],
[
-78.014195,
37.02194
],
[
-78.014327,
37.022032
],
[
-78.014458,
37.022124
],
[
-78.014589,
37.022217
],
[
-78.01472,
37.02231
],
[
-78.014851,
37.022403
],
[
-78.014981,
37.022497
],
[
-78.015111,
37.02259
],
[
-78.015241,
37.022684
],
[
-78.015371,
37.022778
],
[
-78.015501,
37.022872
],
[
-78.01563,
37.022966
],
[
-78.015759,
37.023061
],
[
-78.015888,
37.023156
],
[
-78.016016,
37.023251
],
[
-78.016145,
37.023346
],
[
-78.016273,
37.023442
],
[
-78.0164,
37.023537
],
[
-78.016528,
37.023633
],
[
-78.016655,
37.023729
],
[
-78.016782,
37.023825
],
[
-78.016909,
37.023922
],
[
-78.017036,
37.024018
],
[
-78.017162,
37.024115
],
[
-78.017288,
37.024212
],
[
-78.017414,
37.02431
],
[
-78.01754,
37.024407
],
[
-78.017665,
37.024505
],
[
-78.017791,
37.024603
],
[
-78.017916,
37.024701
],
[
-78.01804,
37.024799
],
[
-78.018165,
37.024897
],
[
-78.018289,
37.024996
],
[
-78.018413,
37.025095
],
[
-78.018537,
37.025194
],
[
-78.01866,
37.025293
],
[
-78.018783,
37.025393
],
[
-78.018906,
37.025492
],
[
-78.019029,
37.025592
],
[
-78.019151,
37.025692
],
[
-78.019274,
37.025792
],
[
-78.019396,
37.025893
],
[
-78.019517,
37.025993
],
[
-78.019639,
37.026094
],
[
-78.01976,
37.026195
],
[
-78.019881,
37.026297
],
[
-78.020002,
37.026398
],
[
-78.020122,
37.0265
],
[
-78.020242,
37.026601
],
[
-78.020362,
37.026703
],
[
-78.020482,
37.026806
],
[
-78.020601,
37.026908
],
[
-78.02072,
37.02701
],
[
-78.020839,
37.027113
],
[
-78.020958,
37.027216
],
[
-78.021076,
37.027319
],
[
-78.021195,
37.027423
],
[
-78.021313,
37.027526
],
[
-78.02143,
37.02763
],
[
-78.021548,
37.027734
],
[
-78.021665,
37.027838
],
[
-78.021782,
37.027942
],
[
-78.021898,
37.028046
],
[
-78.022014,
37.028151
],
[
-78.022131,
37.028256
],
[
-78.022246,
37.028361
],
[
-78.022362,
37.028466
],
[
-78.022477,
37.028572
],
[
-78.022592,
37.028677
],
[
-78.022707,
37.028783
],
[
-78.022822,
37.028889
],
[
-78.022936,
37.028995
],
[
-78.02305,
37.029101
],
[
-78.023163,
37.029208
],
[
-78.023277,
37.029314
],
[
-78.02339,
37.029421
],
[
-78.023503,
37.029528
],
[
-78.023616,
37.029635
],
[
-78.023728,
37.029743
],
[
-78.02384,
37.02985
],
[
-78.023952,
37.029958
],
[
-78.024064,
37.030066
],
[
-78.024175,
37.030174
],
[
-78.024286,
37.030282
],
[
-78.024397,
37.030391
],
[
-78.024507,
37.0305
],
[
-78.024617,
37.030608
],
[
-78.024727,
37.030717
],
[
-78.024837,
37.030826
],
[
-78.024946,
37.030936
],
[
-78.025056,
37.031045
],
[
-78.025164,
37.031155
],
[
-78.025273,
37.031265
],
[
-78.025381,
37.031375
],
[
-78.025489,
37.031485
],
[
-78.025597,
37.031596
],
[
-78.025705,
37.031706
],
[
-78.025812,
37.031817
],
[
-78.025919,
37.031928
],
[
-78.026026,
37.032039
],
[
-78.026132,
37.03215
],
[
-78.026238,
37.032261
],
[
-78.026344,
37.032373
],
[
-78.026449,
37.032485
],
[
-78.026555,
37.032597
],
[
-78.02666,
37.032709
],
[
-78.026764,
37.032821
],
[
-78.026869,
37.032934
],
[
-78.026973,
37.033046
],
[
-78.027077,
37.033159
],
[
-78.02718,
37.033272
],
[
-78.027284,
37.033385
],
[
-78.027387,
37.033498
],
[
-78.02749,
37.033612
],
[
-78.027592,
37.033725
],
[
-78.027694,
37.033839
],
[
-78.027796,
37.033953
],
[
-78.027898,
37.034067
],
[
-78.027999,
37.034181
],
[
-78.0281,
37.034296
],
[
-78.028201,
37.03441
],
[
-78.028301,
37.034525
],
[
-78.028401,
37.03464
],
[
-78.028501,
37.034755
],
[
-78.028601,
37.03487
],
[
-78.0287,
37.034985
],
[
-78.028799,
37.035101
],
[
-78.028898,
37.035217
],
[
-78.028997,
37.035332
],
[
-78.029095,
37.035448
],
[
-78.029193,
37.035565
],
[
-78.02929,
37.035681
],
[
-78.029388,
37.035797
],
[
-78.029485,
37.035914
],
[
-78.029581,
37.036031
],
[
-78.029678,
37.036148
],
[
-78.029774,
37.036265
],
[
-78.02987,
37.036382
],
[
-78.029965,
37.036499
],
[
-78.030061,
37.036617
],
[
-78.030155,
37.036735
],
[
-78.03025,
37.036852
],
[
-78.030345,
37.03697
],
[
-78.030439,
37.037089
],
[
-78.030532,
37.037207
],
[
-78.030626,
37.037325
],
[
-78.030719,
37.037444
],
[
-78.030812,
37.037563
],
[
-78.030905,
37.037682
],
[
-78.030997,
37.037801
],
[
-78.031089,
37.03792
],
[
-78.031181,
37.038039
],
[
-78.031272,
37.038159
],
[
-78.031363,
37.038278
],
[
-78.031454,
37.038398
],
[
-78.031545,
37.038518
],
[
-78.031635,
37.038638
],
[
-78.031725,
37.038758
],
[
-78.031814,
37.038879
],
[
-78.031904,
37.038999
],
[
-78.031993,
37.03912
],
[
-78.032081,
37.039241
],
[
-78.03217,
37.039362
],
[
-78.032258,
37.039483
],
[
-78.032346,
37.039604
],
[
-78.032433,
37.039725
],
[
-78.032521,
37.039847
],
[
-78.032607,
37.039968
],
[
-78.032694,
37.04009
],
[
-78.03278,
37.040212
],
[
-78.032866,
37.040334
],
[
-78.032952,
37.040456
],
[
-78.033038,
37.040579
],
[
-78.033123,
37.040701
],
[
-78.033207,
37.040824
],
[
-78.033292,
37.040946
],
[
-78.033376,
37.041069
],
[
-78.03346,
37.041192
],
[
-78.033543,
37.041315
],
[
-78.033627,
37.041439
],
[
-78.03371,
37.041562
],
[
-78.033792,
37.041686
],
[
-78.033875,
37.041809
],
[
-78.033957,
37.041933
],
[
-78.034038,
37.042057
],
[
-78.03412,
37.042181
],
[
-78.034201,
37.042305
],
[
-78.034282,
37.04243
],
[
-78.034362,
37.042554
],
[
-78.034442,
37.042679
],
[
-78.034522,
37.042803
],
[
-78.034602,
37.042928
],
[
-78.034681,
37.043053
],
[
-78.03476,
37.043178
],
[
-78.034838,
37.043304
],
[
-78.034917,
37.043429
],
[
-78.034995,
37.043554
],
[
-78.035072,
37.04368
],
[
-78.03515,
37.043806
],
[
-78.035227,
37.043932
],
[
-78.035303,
37.044057
],
[
-78.03538,
37.044184
],
[
-78.035456,
37.04431
],
[
-78.035532,
37.044436
],
[
-78.035607,
37.044563
],
[
-78.035682,
37.044689
],
[
-78.035757,
37.044816
],
[
-78.035832,
37.044943
],
[
-78.035906,
37.04507
],
[
-78.03598,
37.045197
],
[
-78.036053,
37.045324
],
[
-78.036127,
37.045451
],
[
-78.0362,
37.045578
],
[
-78.036272,
37.045706
],
[
-78.036345,
37.045834
],
[
-78.036417,
37.045961
],
[
-78.036488,
37.046089
],
[
-78.03656,
37.046217
],
[
-78.036631,
37.046345
],
[
-78.036701,
37.046474
],
[
-78.036772,
37.046602
],
[
-78.036842,
37.04673
],
[
-78.036911,
37.046859
],
[
-78.036981,
37.046988
],
[
-78.03705,
37.047116
],
[
-78.037119,
37.047245
],
[
-78.037187,
37.047374
],
[
-78.037255,
37.047503
],
[
-78.037323,
37.047632
],
[
-78.037391,
37.047762
],
[
-78.037458,
37.047891
],
[
-78.037525,
37.048021
],
[
-78.037591,
37.04815
],
[
-78.037657,
37.04828
],
[
-78.037723,
37.04841
],
[
-78.037789,
37.04854
],
[
-78.037854,
37.04867
],
[
-78.037919,
37.0488
],
[
-78.037984,
37.04893
],
[
-78.038048,
37.049061
],
[
-78.038112,
37.049191
],
[
-78.038175,
37.049322
],
[
-78.038239,
37.049453
],
[
-78.038302,
37.049583
],
[
-78.038364,
37.049714
],
[
-78.038427,
37.049845
],
[
-78.038489,
37.049976
],
[
-78.03855,
37.050107
],
[
-78.038612,
37.050239
],
[
-78.038673,
37.05037
],
[
-78.038733,
37.050502
],
[
-78.038794,
37.050633
],
[
-78.038854,
37.050765
],
[
-78.038913,
37.050897
],
[
-78.038973,
37.051028
],
[
-78.039032,
37.05116
],
[
-78.03909,
37.051292
],
[
-78.039149,
37.051425
],
[
-78.039207,
37.051557
],
[
-78.039264,
37.051689
],
[
-78.039322,
37.051822
],
[
-78.039379,
37.051954
],
[
-78.039436,
37.052087
],
[
-78.039492,
37.052219
],
[
-78.039548,
37.052352
],
[
-78.039604,
37.052485
],
[
-78.039659,
37.052618
],
[
-78.039714,
37.052751
],
[
-78.039769,
37.052884
],
[
-78.039823,
37.053017
],
[
-78.039877,
37.053151
],
[
-78.039931,
37.053284
],
[
-78.039984,
37.053418
],
[
-78.040038,
37.053551
],
[
-78.04009,
37.053685
],
[
-78.040143,
37.053819
],
[
-78.040195,
37.053952
],
[
-78.040246,
37.054086
],
[
-78.040298,
37.05422
],
[
-78.040349,
37.054354
],
[
-78.0404,
37.054489
],
[
-78.04045,
37.054623
],
[
-78.0405,
37.054757
],
[
-78.04055,
37.054891
],
[
-78.040599,
37.055026
],
[
-78.040648,
37.05516
],
[
-78.040697,
37.055295
],
[
-78.040745,
37.05543
],
[
-78.040793,
37.055565
],
[
-78.040841,
37.055699
],
[
-78.040888,
37.055834
],
[
-78.040935,
37.055969
],
[
-78.040982,
37.056105
],
[
-78.041029,
37.05624
],
[
-78.041075,
37.056375
],
[
-78.04112,
37.05651
],
[
-78.041166,
37.056646
],
[
-78.041211,
37.056781
],
[
-78.041255,
37.056917
],
[
-78.0413,
37.057052
],
[
-78.041344,
37.057188
],
[
-78.041387,
37.057324
],
[
-78.041431,
37.057459
],
[
-78.041474,
37.057595
],
[
-78.041516,
37.057731
],
[
-78.041559,
37.057867
],
[
-78.0416,
37.058003
],
[
-78.041642,
37.058139
],
[
-78.041683,
37.058276
],
[
-78.041724,
37.058412
],
[
-78.041765,
37.058548
],
[
-78.041805,
37.058685
],
[
-78.041845,
37.058821
],
[
-78.041885,
37.058958
],
[
-78.041924,
37.059094
],
[
-78.041963,
37.059231
],
[
-78.042001,
37.059368
],
[
-78.04204,
37.059505
],
[
-78.042078,
37.059641
],
[
-78.042115,
37.059778
],
[
-78.042152,
37.059915
],
[
-78.042189,
37.060052
],
[
-78.042226,
37.060189
],
[
-78.042262,
37.060327
],
[
-78.042298,
37.060464
],
[
-78.042333,
37.060601
],
[
-78.042368,
37.060738
],
[
-78.042403,
37.060876
],
[
-78.042437,
37.061013
],
[
-78.042472,
37.061151
],
[
-78.042505,
37.061288
],
[
-78.042539,
37.061426
],
[
-78.042572,
37.061563
],
[
-78.042605,
37.061701
],
[
-78.042637,
37.061839
],
[
-78.042669,
37.061977
],
[
-78.042701,
37.062115
],
[
-78.042732,
37.062252
],
[
-78.042763,
37.06239
],
[
-78.042794,
37.062528
],
[
-78.042824,
37.062666
],
[
-78.042854,
37.062805
],
[
-78.042884,
37.062943
],
[
-78.042913,
37.063081
],
[
-78.042942,
37.063219
],
[
-78.042971,
37.063357
],
[
-78.042999,
37.063496
],
[
-78.043027,
37.063634
],
[
-78.043054,
37.063773
],
[
-78.043082,
37.063911
],
[
-78.043109,
37.06405
],
[
-78.043135,
37.064188
],
[
-78.043161,
37.064327
],
[
-78.043187,
37.064465
],
[
-78.043213,
37.064604
],
[
-78.043238,
37.064743
],
[
-78.043263,
37.064882
],
[
-78.043287,
37.06502
],
[
-78.043311,
37.065159
],
[
-78.043335,
37.065298
],
[
-78.043358,
37.065437
],
[
-78.043381,
37.065576
],
[
-78.043404,
37.065715
],
[
-78.043427,
37.065854
],
[
-78.043449,
37.065993
],
[
-78.04347,
37.066132
],
[
-78.043492,
37.066271
],
[
-78.043513,
37.06641
],
[
-78.043533,
37.06655
],
[
-78.043554,
37.066689
],
[
-78.043573,
37.066828
],
[
-78.043593,
37.066967
],
[
-78.043612,
37.067107
],
[
-78.043631,
37.067246
],
[
-78.04365,
37.067385
],
[
-78.043668,
37.067525
],
[
-78.043686,
37.067664
],
[
-78.043703,
37.067804
],
[
-78.043721,
37.067943
],
[
-78.043737,
37.068083
],
[
-78.043754,
37.068222
],
[
-78.04377,
37.068362
],
[
-78.043786,
37.068502
],
[
-78.043801,
37.068641
],
[
-78.043816,
37.068781
],
[
-78.043831,
37.06892
],
[
-78.043845,
37.06906
],
[
-78.043859,
37.0692
],
[
-78.043873,
37.06934
],
[
-78.043886,
37.069479
],
[
-78.043899,
37.069619
],
[
-78.043912,
37.069759
],
[
-78.043924,
37.069899
],
[
-78.043936,
37.070039
],
[
-78.043948,
37.070179
],
[
-78.043959,
37.070318
],
[
-78.04397,
37.070458
],
[
-78.043981,
37.070598
],
[
-78.043991,
37.070738
],
[
-78.044001,
37.070878
],
[
-78.04401,
37.071018
],
[
-78.044019,
37.071158
],
[
-78.044028,
37.071298
],
[
-78.044036,
37.071438
],
[
-78.044045,
37.071578
],
[
-78.044052,
37.071718
],
[
-78.04406,
37.071858
],
[
-78.044067,
37.071998
],
[
-78.044073,
37.072138
],
[
-78.04408,
37.072279
],
[
-78.044086,
37.072419
],
[
-78.044091,
37.072559
],
[
-78.044097,
37.072699
],
[
-78.044102,
37.072839
],
[
-78.044106,
37.072979
],
[
-78.044111,
37.073119
],
[
-78.044114,
37.073259
],
[
-78.044118,
37.0734
],
[
-78.044121,
37.07354
],
[
-78.044124,
37.07368
],
[
-78.044127,
37.07382
],
[
-78.044129,
37.07396
],
[
-78.044131,
37.0741
],
[
-78.044132,
37.074241
],
[
-78.044133,
37.074381
],
[
-78.044134,
37.074521
],
[
-78.044134,
37.074661
],
[
-78.044134,
37.074801
],
[
-78.044134,
37.074941
],
[
-78.044133,
37.075082
],
[
-78.044132,
37.075222
],
[
-78.044131,
37.075362
],
[
-78.044129,
37.075502
],
[
-78.044127,
37.075642
],
[
-78.044125,
37.075782
],
[
-78.044122,
37.075923
],
[
-78.044119,
37.076063
],
[
-78.044116,
37.076203
],
[
-78.044112,
37.076343
],
[
-78.044108,
37.076483
],
[
-78.044103,
37.076623
],
[
-78.044098,
37.076763
],
[
-78.044093,
37.076904
],
[
-78.044088,
37.077044
],
[
-78.044082,
37.077184
],
[
-78.044075,
37.077324
],
[
-78.044069,
37.077464
],
[
-78.044062,
37.077604
],
[
-78.044055,
37.077744
],
[
-78.044047,
37.077884
],
[
-78.044039,
37.078024
],
[
-78.044031,
37.078164
],
[
-78.044022,
37.078304
],
[
-78.044013,
37.078444
],
[
-78.044004,
37.078584
],
[
-78.043994,
37.078724
],
[
-78.043984,
37.078864
],
[
-78.043973,
37.079004
],
[
-78.043962,
37.079144
],
[
-78.043951,
37.079284
],
[
-78.04394,
37.079424
],
[
-78.043928,
37.079563
],
[
-78.043916,
37.079703
],
[
-78.043903,
37.079843
],
[
-78.04389,
37.079983
],
[
-78.043877,
37.080123
],
[
-78.043864,
37.080262
],
[
-78.04385,
37.080402
],
[
-78.043835,
37.080542
],
[
-78.043821,
37.080682
],
[
-78.043806,
37.080821
],
[
-78.043791,
37.080961
],
[
-78.043775,
37.0811
],
[
-78.043759,
37.08124
],
[
-78.043742,
37.08138
],
[
-78.043726,
37.081519
],
[
-78.043709,
37.081659
],
[
-78.043691,
37.081798
],
[
-78.043673,
37.081938
],
[
-78.043655,
37.082077
],
[
-78.043637,
37.082216
],
[
-78.043618,
37.082356
],
[
-78.043599,
37.082495
],
[
-78.043579,
37.082634
],
[
-78.04356,
37.082774
],
[
-78.043539,
37.082913
],
[
-78.043519,
37.083052
],
[
-78.043498,
37.083191
],
[
-78.043477,
37.08333
],
[
-78.043455,
37.08347
],
[
-78.043433,
37.083609
],
[
-78.043411,
37.083748
],
[
-78.043388,
37.083887
],
[
-78.043365,
37.084026
],
[
-78.043342,
37.084165
],
[
-78.043318,
37.084303
],
[
-78.043294,
37.084442
],
[
-78.04327,
37.084581
],
[
-78.043245,
37.08472
],
[
-78.04322,
37.084859
],
[
-78.043195,
37.084997
],
[
-78.043169,
37.085136
],
[
-78.043143,
37.085275
],
[
-78.043116,
37.085413
],
[
-78.04309,
37.085552
],
[
-78.043063,
37.08569
],
[
-78.043035,
37.085829
],
[
-78.043007,
37.085967
],
[
-78.042979,
37.086105
],
[
-78.042951,
37.086244
],
[
-78.042922,
37.086382
],
[
-78.042893,
37.08652
],
[
-78.042863,
37.086658
],
[
-78.042833,
37.086796
],
[
-78.042803,
37.086934
],
[
-78.042772,
37.087072
],
[
-78.042741,
37.08721
],
[
-78.04271,
37.087348
],
[
-78.042678,
37.087486
],
[
-78.042646,
37.087624
],
[
-78.042614,
37.087762
],
[
-78.042581,
37.0879
],
[
-78.042548,
37.088037
],
[
-78.042515,
37.088175
],
[
-78.042481,
37.088312
],
[
-78.042447,
37.08845
],
[
-78.042413,
37.088587
],
[
-78.042378,
37.088725
],
[
-78.042343,
37.088862
],
[
-78.042308,
37.088999
],
[
-78.042272,
37.089137
],
[
-78.042236,
37.089274
],
[
-78.0422,
37.089411
],
[
-78.042163,
37.089548
],
[
-78.042126,
37.089685
],
[
-78.042088,
37.089822
],
[
-78.042051,
37.089959
],
[
-78.042012,
37.090095
],
[
-78.041974,
37.090232
],
[
-78.041935,
37.090369
],
[
-78.041896,
37.090505
],
[
-78.041856,
37.090642
],
[
-78.041817,
37.090779
],
[
-78.041776,
37.090915
],
[
-78.041736,
37.091051
],
[
-78.041695,
37.091188
],
[
-78.041654,
37.091324
],
[
-78.041612,
37.09146
],
[
-78.04157,
37.091596
],
[
-78.041528,
37.091732
],
[
-78.041486,
37.091868
],
[
-78.041443,
37.092004
],
[
-78.041399,
37.09214
],
[
-78.041356,
37.092276
],
[
-78.041312,
37.092411
],
[
-78.041268,
37.092547
],
[
-78.041223,
37.092682
],
[
-78.041178,
37.092818
],
[
-78.041133,
37.092953
],
[
-78.041087,
37.093089
],
[
-78.041041,
37.093224
],
[
-78.040995,
37.093359
],
[
-78.040948,
37.093494
],
[
-78.040901,
37.093629
],
[
-78.040854,
37.093764
],
[
-78.040806,
37.093899
],
[
-78.040758,
37.094034
],
[
-78.04071,
37.094169
],
[
-78.040662,
37.094303
],
[
-78.040613,
37.094438
],
[
-78.040563,
37.094572
],
[
-78.040514,
37.094707
],
[
-78.040464,
37.094841
],
[
-78.040413,
37.094975
],
[
-78.040363,
37.09511
],
[
-78.040312,
37.095244
],
[
-78.04026,
37.095378
],
[
-78.040209,
37.095512
],
[
-78.040157,
37.095645
],
[
-78.040104,
37.095779
],
[
-78.040052,
37.095913
],
[
-78.039999,
37.096046
],
[
-78.039945,
37.09618
],
[
-78.039892,
37.096313
],
[
-78.039838,
37.096447
],
[
-78.039783,
37.09658
],
[
-78.039729,
37.096713
],
[
-78.039674,
37.096846
],
[
-78.039618,
37.096979
],
[
-78.039563,
37.097112
],
[
-78.039507,
37.097245
],
[
-78.03945,
37.097378
],
[
-78.039394,
37.09751
],
[
-78.039337,
37.097643
],
[
-78.039279,
37.097775
],
[
-78.039222,
37.097908
],
[
-78.039164,
37.09804
],
[
-78.039105,
37.098172
],
[
-78.039047,
37.098304
],
[
-78.038988,
37.098436
],
[
-78.038928,
37.098568
],
[
-78.038869,
37.0987
],
[
-78.038809,
37.098831
],
[
-78.038748,
37.098963
],
[
-78.038688,
37.099094
],
[
-78.038627,
37.099226
],
[
-78.038566,
37.099357
],
[
-78.038504,
37.099488
],
[
-78.038442,
37.099619
],
[
-78.03838,
37.09975
],
[
-78.038317,
37.099881
],
[
-78.038254,
37.100012
],
[
-78.038191,
37.100143
],
[
-78.038127,
37.100274
],
[
-78.038064,
37.100404
],
[
-78.037999,
37.100534
],
[
-78.037935,
37.100665
],
[
-78.03787,
37.100795
],
[
-78.037805,
37.100925
],
[
-78.037739,
37.101055
],
[
-78.037673,
37.101185
],
[
-78.037607,
37.101315
],
[
-78.037541,
37.101444
],
[
-78.037474,
37.101574
],
[
-78.037407,
37.101703
],
[
-78.037339,
37.101833
],
[
-78.037271,
37.101962
],
[
-78.037203,
37.102091
],
[
-78.037135,
37.10222
],
[
-78.037066,
37.102349
],
[
-78.036997,
37.102478
],
[
-78.036928,
37.102606
],
[
-78.036858,
37.102735
],
[
-78.036788,
37.102863
],
[
-78.036718,
37.102992
],
[
-78.036647,
37.10312
],
[
-78.036576,
37.103248
],
[
-78.036505,
37.103376
],
[
-78.036433,
37.103504
],
[
-78.036361,
37.103632
],
[
-78.036289,
37.103759
],
[
-78.036216,
37.103887
],
[
-78.036143,
37.104014
],
[
-78.03607,
37.104142
],
[
-78.035996,
37.104269
],
[
-78.035922,
37.104396
],
[
-78.035848,
37.104523
],
[
-78.035774,
37.10465
],
[
-78.035699,
37.104777
],
[
-78.035624,
37.104903
],
[
-78.035548,
37.10503
],
[
-78.035473,
37.105156
],
[
-78.035396,
37.105282
],
[
-78.03532,
37.105408
],
[
-78.035243,
37.105534
],
[
-78.035166,
37.10566
],
[
-78.035089,
37.105786
],
[
-78.035011,
37.105912
],
[
-78.034933,
37.106037
],
[
-78.034855,
37.106162
],
[
-78.034776,
37.106288
],
[
-78.034697,
37.106413
],
[
-78.034618,
37.106538
],
[
-78.034539,
37.106663
],
[
-78.034459,
37.106787
],
[
-78.034379,
37.106912
],
[
-78.034298,
37.107036
],
[
-78.034217,
37.107161
],
[
-78.034136,
37.107285
],
[
-78.034055,
37.107409
],
[
-78.033973,
37.107533
],
[
-78.033891,
37.107657
],
[
-78.033809,
37.107781
],
[
-78.033726,
37.107904
],
[
-78.033643,
37.108028
],
[
-78.03356,
37.108151
],
[
-78.033476,
37.108274
],
[
-78.033392,
37.108397
],
[
-78.033308,
37.10852
],
[
-78.033224,
37.108643
],
[
-78.033139,
37.108765
],
[
-78.033054,
37.108888
],
[
-78.032968,
37.10901
],
[
-78.032883,
37.109132
],
[
-78.032797,
37.109254
],
[
-78.03271,
37.109376
],
[
-78.032624,
37.109498
],
[
-78.032537,
37.10962
],
[
-78.03245,
37.109741
],
[
-78.032362,
37.109863
],
[
-78.032274,
37.109984
],
[
-78.032186,
37.110105
],
[
-78.032098,
37.110226
],
[
-78.032009,
37.110347
],
[
-78.03192,
37.110468
],
[
-78.03183,
37.110588
],
[
-78.031741,
37.110708
],
[
-78.031651,
37.110829
],
[
-78.031561,
37.110949
],
[
-78.03147,
37.111069
],
[
-78.031379,
37.111189
],
[
-78.031288,
37.111308
],
[
-78.031196,
37.111428
],
[
-78.031105,
37.111547
],
[
-78.031013,
37.111666
],
[
-78.03092,
37.111785
],
[
-78.030828,
37.111904
],
[
-78.030735,
37.112023
],
[
-78.030641,
37.112142
],
[
-78.030548,
37.11226
],
[
-78.030454,
37.112379
],
[
-78.03036,
37.112497
],
[
-78.030266,
37.112615
],
[
-78.030171,
37.112733
],
[
-78.030076,
37.11285
],
[
-78.02998,
37.112968
],
[
-78.029885,
37.113085
],
[
-78.029789,
37.113203
],
[
-78.029693,
37.11332
],
[
-78.029596,
37.113437
],
[
-78.0295,
37.113553
],
[
-78.029402,
37.11367
],
[
-78.029305,
37.113787
],
[
-78.029207,
37.113903
],
[
-78.02911,
37.114019
],
[
-78.029011,
37.114135
],
[
-78.028913,
37.114251
],
[
-78.028814,
37.114367
],
[
-78.028715,
37.114482
],
[
-78.028615,
37.114598
],
[
-78.028516,
37.114713
],
[
-78.028416,
37.114828
],
[
-78.028316,
37.114943
],
[
-78.028215,
37.115058
],
[
-78.028114,
37.115172
],
[
-78.028013,
37.115287
],
[
-78.027912,
37.115401
],
[
-78.02781,
37.115515
],
[
-78.027708,
37.115629
],
[
-78.027606,
37.115743
],
[
-78.027503,
37.115856
],
[
-78.0274,
37.11597
],
[
-78.027297,
37.116083
],
[
-78.027194,
37.116196
],
[
-78.02709,
37.116309
],
[
-78.026986,
37.116422
],
[
-78.026882,
37.116534
],
[
-78.026778,
37.116647
],
[
-78.026673,
37.116759
],
[
-78.026568,
37.116871
],
[
-78.026462,
37.116983
],
[
-78.026357,
37.117095
],
[
-78.026251,
37.117207
],
[
-78.026145,
37.117318
],
[
-78.026038,
37.117429
],
[
-78.025931,
37.11754
],
[
-78.025824,
37.117651
],
[
-78.025717,
37.117762
],
[
-78.025609,
37.117873
],
[
-78.025502,
37.117983
],
[
-78.025393,
37.118093
],
[
-78.025285,
37.118203
],
[
-78.025176,
37.118313
],
[
-78.025067,
37.118423
],
[
-78.024958,
37.118532
],
[
-78.024849,
37.118642
],
[
-78.024739,
37.118751
],
[
-78.024629,
37.11886
],
[
-78.024519,
37.118969
],
[
-78.024408,
37.119077
],
[
-78.024297,
37.119186
],
[
-78.024186,
37.119294
],
[
-78.024074,
37.119402
],
[
-78.023963,
37.11951
],
[
-78.023851,
37.119618
],
[
-78.023739,
37.119726
],
[
-78.023626,
37.119833
],
[
-78.023513,
37.11994
],
[
-78.0234,
37.120047
],
[
-78.023287,
37.120154
],
[
-78.023174,
37.120261
],
[
-78.02306,
37.120367
],
[
-78.022946,
37.120474
],
[
-78.022831,
37.12058
],
[
-78.022717,
37.120686
],
[
-78.022602,
37.120791
],
[
-78.022487,
37.120897
],
[
-78.022371,
37.121002
],
[
-78.022255,
37.121108
],
[
-78.02214,
37.121213
],
[
-78.022023,
37.121318
],
[
-78.021907,
37.121422
],
[
-78.02179,
37.121527
],
[
-78.021673,
37.121631
],
[
-78.021556,
37.121735
],
[
-78.021438,
37.121839
],
[
-78.021321,
37.121943
],
[
-78.021203,
37.122046
],
[
-78.021084,
37.122149
],
[
-78.020966,
37.122253
],
[
-78.020847,
37.122356
],
[
-78.020728,
37.122458
],
[
-78.020609,
37.122561
],
[
-78.020489,
37.122663
],
[
-78.020369,
37.122765
],
[
-78.020249,
37.122867
],
[
-78.020129,
37.122969
],
[
-78.020008,
37.123071
],
[
-78.019887,
37.123172
],
[
-78.019766,
37.123274
],
[
-78.019645,
37.123375
],
[
-78.019523,
37.123475
],
[
-78.019401,
37.123576
],
[
-78.019279,
37.123676
],
[
-78.019157,
37.123777
],
[
-78.019034,
37.123877
],
[
-78.018912,
37.123977
],
[
-78.018788,
37.124076
],
[
-78.018665,
37.124176
],
[
-78.018541,
37.124275
],
[
-78.018418,
37.124374
],
[
-78.018293,
37.124473
],
[
-78.018169,
37.124572
],
[
-78.018045,
37.12467
],
[
-78.01792,
37.124768
],
[
-78.017795,
37.124866
],
[
-78.017669,
37.124964
],
[
-78.017544,
37.125062
],
[
-78.017418,
37.125159
],
[
-78.017292,
37.125257
],
[
-78.017165,
37.125354
],
[
-78.017039,
37.125451
],
[
-78.016912,
37.125547
],
[
-78.016785,
37.125644
],
[
-78.016658,
37.12574
],
[
-78.01653,
37.125836
],
[
-78.016403,
37.125932
],
[
-78.016275,
37.126027
],
[
-78.016146,
37.126123
],
[
-78.016018,
37.126218
],
[
-78.015889,
37.126313
],
[
-78.01576,
37.126408
],
[
-78.015631,
37.126503
],
[
-78.015502,
37.126597
],
[
-78.015372,
37.126691
],
[
-78.015242,
37.126785
],
[
-78.015112,
37.126879
],
[
-78.014982,
37.126972
],
[
-78.014851,
37.127066
],
[
-78.01472,
37.127159
],
[
-78.014589,
37.127252
],
[
-78.014458,
37.127345
],
[
-78.014326,
37.127437
],
[
-78.014195,
37.127529
],
[
-78.014063,
37.127621
],
[
-78.01393,
37.127713
],
[
-78.013798,
37.127805
],
[
-78.013665,
37.127896
],
[
-78.013532,
37.127988
],
[
-78.013399,
37.128079
],
[
-78.013266,
37.12817
],
[
-78.013132,
37.12826
],
[
-78.012998,
37.128351
],
[
-78.012864,
37.128441
],
[
-78.01273,
37.128531
],
[
-78.012596,
37.12862
],
[
-78.012461,
37.12871
],
[
-78.012326,
37.128799
],
[
-78.012191,
37.128888
],
[
-78.012055,
37.128977
],
[
-78.01192,
37.129066
],
[
-78.011784,
37.129154
],
[
-78.011648,
37.129243
],
[
-78.011512,
37.129331
],
[
-78.011375,
37.129418
],
[
-78.011239,
37.129506
],
[
-78.011102,
37.129593
],
[
-78.010964,
37.12968
],
[
-78.010827,
37.129767
],
[
-78.01069,
37.129854
],
[
-78.010552,
37.12994
],
[
-78.010414,
37.130027
],
[
-78.010276,
37.130113
],
[
-78.010137,
37.130199
],
[
-78.009998,
37.130284
],
[
-78.00986,
37.130369
],
[
-78.00972,
37.130455
],
[
-78.009581,
37.13054
],
[
-78.009442,
37.130624
],
[
-78.009302,
37.130709
],
[
-78.009162,
37.130793
],
[
-78.009022,
37.130877
],
[
-78.008882,
37.130961
],
[
-78.008741,
37.131044
],
[
-78.0086,
37.131128
],
[
-78.008459,
37.131211
],
[
-78.008318,
37.131294
],
[
-78.008177,
37.131376
],
[
-78.008035,
37.131459
],
[
-78.007893,
37.131541
],
[
-78.007751,
37.131623
],
[
-78.007609,
37.131705
],
[
-78.007467,
37.131786
],
[
-78.007324,
37.131868
],
[
-78.007181,
37.131949
],
[
-78.007038,
37.13203
],
[
-78.006895,
37.13211
],
[
-78.006752,
37.132191
],
[
-78.006608,
37.132271
],
[
-78.006464,
37.132351
],
[
-78.00632,
37.13243
],
[
-78.006176,
37.13251
],
[
-78.006031,
37.132589
],
[
-78.005887,
37.132668
],
[
-78.005742,
37.132747
],
[
-78.005597,
37.132825
],
[
-78.005452,
37.132904
],
[
-78.005306,
37.132982
],
[
-78.005161,
37.133059
],
[
-78.005015,
37.133137
],
[
-78.004869,
37.133214
],
[
-78.004723,
37.133292
],
[
-78.004576,
37.133368
],
[
-78.00443,
37.133445
],
[
-78.004283,
37.133522
],
[
-78.004136,
37.133598
],
[
-78.003989,
37.133674
],
[
-78.003842,
37.133749
],
[
-78.003694,
37.133825
],
[
-78.003546,
37.1339
],
[
-78.003398,
37.133975
],
[
-78.00325,
37.13405
],
[
-78.003102,
37.134125
],
[
-78.002954,
37.134199
],
[
-78.002805,
37.134273
],
[
-78.002656,
37.134347
],
[
-78.002507,
37.13442
],
[
-78.002358,
37.134494
],
[
-78.002208,
37.134567
],
[
-78.002059,
37.13464
],
[
-78.001909,
37.134712
],
[
-78.001759,
37.134785
],
[
-78.001609,
37.134857
],
[
-78.001459,
37.134929
],
[
-78.001308,
37.135
],
[
-78.001158,
37.135072
],
[
-78.001007,
37.135143
],
[
-78.000856,
37.135214
],
[
-78.000705,
37.135285
],
[
-78.000553,
37.135355
],
[
-78.000402,
37.135425
],
[
-78.00025,
37.135495
],
[
-78.000098,
37.135565
],
[
-77.999946,
37.135634
],
[
-77.999794,
37.135704
],
[
-77.999642,
37.135773
],
[
-77.999489,
37.135841
],
[
-77.999336,
37.13591
],
[
-77.999183,
37.135978
],
[
-77.99903,
37.136046
],
[
-77.998877,
37.136114
],
[
-77.998723,
37.136182
],
[
-77.99857,
37.136249
],
[
-77.998416,
37.136316
],
[
-77.998262,
37.136383
],
[
-77.998108,
37.136449
],
[
-77.997954,
37.136516
],
[
-77.997799,
37.136582
],
[
-77.997645,
37.136647
],
[
-77.99749,
37.136713
],
[
-77.997335,
37.136778
],
[
-77.99718,
37.136843
],
[
-77.997025,
37.136908
],
[
-77.996869,
37.136973
],
[
-77.996714,
37.137037
],
[
-77.996558,
37.137101
],
[
-77.996402,
37.137165
],
[
-77.996246,
37.137228
],
[
-77.99609,
37.137292
],
[
-77.995933,
37.137355
],
[
-77.995777,
37.137418
],
[
-77.99562,
37.13748
],
[
-77.995463,
37.137542
],
[
-77.995306,
37.137604
],
[
-77.995149,
37.137666
],
[
-77.994992,
37.137728
],
[
-77.994835,
37.137789
],
[
-77.994677,
37.13785
],
[
-77.994519,
37.137911
],
[
-77.994361,
37.137971
],
[
-77.994203,
37.138032
],
[
-77.994045,
37.138092
],
[
-77.993887,
37.138152
],
[
-77.993728,
37.138211
],
[
-77.993569,
37.13827
],
[
-77.993411,
37.138329
],
[
-77.993252,
37.138388
],
[
-77.993092,
37.138447
],
[
-77.992933,
37.138505
],
[
-77.992774,
37.138563
],
[
-77.992614,
37.138621
],
[
-77.992455,
37.138678
],
[
-77.992295,
37.138735
],
[
-77.992135,
37.138792
],
[
-77.991975,
37.138849
],
[
-77.991814,
37.138906
],
[
-77.991654,
37.138962
],
[
-77.991493,
37.139018
],
[
-77.991333,
37.139073
],
[
-77.991172,
37.139129
],
[
-77.991011,
37.139184
],
[
-77.99085,
37.139239
],
[
-77.990689,
37.139294
],
[
-77.990527,
37.139348
],
[
-77.990366,
37.139402
],
[
-77.990204,
37.139456
],
[
-77.990042,
37.13951
],
[
-77.98988,
37.139563
],
[
-77.989718,
37.139616
],
[
-77.989556,
37.139669
],
[
-77.989394,
37.139721
],
[
-77.989231,
37.139774
],
[
-77.989069,
37.139826
],
[
-77.988906,
37.139878
],
[
-77.988743,
37.139929
],
[
-77.98858,
37.139981
],
[
-77.988417,
37.140032
],
[
-77.988254,
37.140082
],
[
-77.988091,
37.140133
],
[
-77.987927,
37.140183
],
[
-77.987764,
37.140233
],
[
-77.9876,
37.140283
],
[
-77.987436,
37.140332
],
[
-77.987272,
37.140381
],
[
-77.987108,
37.14043
],
[
-77.986944,
37.140479
],
[
-77.98678,
37.140527
],
[
-77.986615,
37.140575
],
[
-77.986451,
37.140623
],
[
-77.986286,
37.140671
],
[
-77.986121,
37.140718
],
[
-77.985956,
37.140765
],
[
-77.985791,
37.140812
],
[
-77.985626,
37.140859
],
[
-77.985461,
37.140905
],
[
-77.985295,
37.140951
],
[
-77.98513,
37.140997
],
[
-77.984964,
37.141042
],
[
-77.984798,
37.141087
],
[
-77.984633,
37.141132
],
[
-77.984467,
37.141177
],
[
-77.984301,
37.141222
],
[
-77.984134,
37.141266
],
[
-77.983968,
37.14131
],
[
-77.983802,
37.141353
],
[
-77.983635,
37.141397
],
[
-77.983469,
37.14144
],
[
-77.983302,
37.141482
],
[
-77.983135,
37.141525
],
[
-77.982968,
37.141567
],
[
-77.982801,
37.141609
],
[
-77.982634,
37.141651
],
[
-77.982467,
37.141693
],
[
-77.982299,
37.141734
],
[
-77.982132,
37.141775
],
[
-77.981964,
37.141815
],
[
-77.981797,
37.141856
],
[
-77.981629,
37.141896
],
[
-77.981461,
37.141936
],
[
-77.981293,
37.141975
],
[
-77.981125,
37.142015
],
[
-77.980957,
37.142054
],
[
-77.980788,
37.142093
],
[
-77.98062,
37.142131
],
[
-77.980452,
37.142169
],
[
-77.980283,
37.142207
],
[
-77.980114,
37.142245
],
[
-77.979946,
37.142283
],
[
-77.979777,
37.14232
],
[
-77.979608,
37.142357
],
[
-77.979439,
37.142393
],
[
-77.97927,
37.14243
],
[
-77.979101,
37.142466
],
[
-77.978931,
37.142502
],
[
-77.978762,
37.142537
],
[
-77.978593,
37.142572
],
[
-77.978423,
37.142607
],
[
-77.978253,
37.142642
],
[
-77.978084,
37.142677
],
[
-77.977914,
37.142711
],
[
-77.977744,
37.142745
],
[
-77.977574,
37.142778
],
[
-77.977404,
37.142812
],
[
-77.977234,
37.142845
],
[
-77.977063,
37.142878
],
[
-77.976893,
37.14291
],
[
-77.976723,
37.142943
],
[
-77.976552,
37.142975
],
[
-77.976382,
37.143006
],
[
-77.976211,
37.143038
],
[
-77.97604,
37.143069
],
[
-77.97587,
37.1431
],
[
-77.975699,
37.143131
],
[
-77.975528,
37.143161
],
[
-77.975357,
37.143191
],
[
-77.975186,
37.143221
],
[
-77.975015,
37.14325
],
[
-77.974843,
37.14328
],
[
-77.974672,
37.143309
],
[
-77.974501,
37.143337
],
[
-77.974329,
37.143366
],
[
-77.974158,
37.143394
],
[
-77.973986,
37.143422
],
[
-77.973814,
37.143449
],
[
-77.973643,
37.143477
],
[
-77.973471,
37.143504
],
[
-77.973299,
37.143531
],
[
-77.973127,
37.143557
],
[
-77.972955,
37.143583
],
[
-77.972783,
37.143609
],
[
-77.972611,
37.143635
],
[
-77.972439,
37.143661
],
[
-77.972266,
37.143686
],
[
-77.972094,
37.143711
],
[
-77.971922,
37.143735
],
[
-77.971749,
37.143759
],
[
-77.971577,
37.143784
],
[
-77.971404,
37.143807
],
[
-77.971231,
37.143831
],
[
-77.971059,
37.143854
],
[
-77.970886,
37.143877
],
[
-77.970713,
37.1439
],
[
-77.97054,
37.143922
],
[
-77.970367,
37.143944
],
[
-77.970194,
37.143966
],
[
-77.970021,
37.143987
],
[
-77.969848,
37.144009
],
[
-77.969675,
37.14403
],
[
-77.969502,
37.14405
],
[
-77.969329,
37.144071
],
[
-77.969156,
37.144091
],
[
-77.968982,
37.144111
],
[
-77.968809,
37.14413
],
[
-77.968635,
37.14415
],
[
-77.968462,
37.144169
],
[
-77.968288,
37.144188
],
[
-77.968115,
37.144206
],
[
-77.967941,
37.144224
],
[
-77.967768,
37.144242
],
[
-77.967594,
37.14426
],
[
-77.96742,
37.144277
],
[
-77.967246,
37.144294
],
[
-77.967072,
37.144311
],
[
-77.966899,
37.144328
],
[
-77.966725,
37.144344
],
[
-77.966551,
37.14436
],
[
-77.966377,
37.144376
],
[
-77.966203,
37.144391
],
[
-77.966029,
37.144406
],
[
-77.965854,
37.144421
],
[
-77.96568,
37.144436
],
[
-77.965506,
37.14445
],
[
-77.965332,
37.144464
],
[
-77.965158,
37.144478
],
[
-77.964983,
37.144491
],
[
-77.964809,
37.144505
],
[
-77.964635,
37.144517
],
[
-77.96446,
37.14453
],
[
-77.964286,
37.144542
],
[
-77.964111,
37.144555
],
[
-77.963937,
37.144566
],
[
-77.963762,
37.144578
],
[
-77.963588,
37.144589
],
[
-77.963413,
37.1446
],
[
-77.963239,
37.144611
],
[
-77.963064,
37.144621
],
[
-77.962889,
37.144631
],
[
-77.962715,
37.144641
],
[
-77.96254,
37.144651
],
[
-77.962365,
37.14466
],
[
-77.962191,
37.144669
],
[
-77.962016,
37.144678
],
[
-77.961841,
37.144686
],
[
-77.961666,
37.144694
],
[
-77.961491,
37.144702
],
[
-77.961317,
37.14471
],
[
-77.961142,
37.144717
],
[
-77.960967,
37.144724
],
[
-77.960792,
37.144731
],
[
-77.960617,
37.144737
],
[
-77.960442,
37.144743
],
[
-77.960267,
37.144749
],
[
-77.960092,
37.144755
],
[
-77.959917,
37.14476
],
[
-77.959742,
37.144765
],
[
-77.959567,
37.14477
],
[
-77.959392,
37.144775
],
[
-77.959217,
37.144779
],
[
-77.959042,
37.144783
],
[
-77.958867,
37.144787
],
[
-77.958692,
37.14479
],
[
-77.958517,
37.144793
],
[
-77.958342,
37.144796
],
[
-77.958167,
37.144799
],
[
-77.957992,
37.144801
],
[
-77.957817,
37.144803
],
[
-77.957641,
37.144805
],
[
-77.957466,
37.144806
],
[
-77.957291,
37.144807
],
[
-77.957116,
37.144808
],
[
-77.956941,
37.144809
],
[
-77.956766,
37.144809
],
[
-77.956662,
37.144809
]
]
]
},
"properties": {
"airspace_type": "CAS",
"name": "BLACKSTONE CLASS D",
"cas_class": "D",
"floor": 0,
"ceiling": 2500,
"laanc": false
}
}
]
}
]
} As noted in the API specification, for airspace requests the found element will be a list of GeoJSON FeatureCollections, one for each Airspace type requested. Below shows the entirety of returned results, with the dashed circle indicating the requested area.
Let’s look at each airspace type we requested, and interpret the results.
Special Use Airspace (SUA)
First in our asptypes list was “SUA”. The feature properties given for SUA are:
- name: name of the area
- sua_type: one of
- AA = Alert Area
- MOA = Military Operations Area
- NSA = National Security Area
- PA = Prohibited Area
- RA = Restricted Area
- WA = Warning Area
- floor: lower limit of the airspace
- floor_uom: unit of measure used for the numeric floor value: FT (feet) or FL (flight level)
- floor_ref: reference level used for the numeric floor value: AGL, MSL, or STD (standard atmosphere, used for flight level values)
- ceiling: upper limit of the airspace
- ceiling_uom: unit of measure used for the numeric floor value: FT (feet) or FL (flight level)
- ceiling_ref: reference level used for the numeric ceiling value: AGL, MSL, or STD (standard atmosphere, used for flight level values)
- schedule: default activation days/times (other times by NOTAM)
The first three are MOAs (Military Operations Areas), and if you are flying below 500′ AGL you can safely ignore their presence. Notice the schedule start and end times are given as SR and SS. This means between sunrise and sunset – whatever times those may be on the day in question. Flying within the defined altitudes of a MOA when it is active is not strictly prohibited, but it should be considered risky given the fact that military activities such as air combat maneuvers, air intercepts, acrobatics, etc. will be taking place in that area.
The second three are RAs (Restricted Areas), and per Part 107.45 you’re not allowed to be here without prior permission from “the using or controlling agency, as appropriate”. The controlling agency is always the FAA, usually it’s the ARTCC associated with the airspace.
Military Training Routes (MTR)
Next we have an MTR (Military Training Route). The feature properties given for MTRs are:
- name: name of the route
- use_times: textual description of days/times when the MTR is active
- terrain_following: boolean value indicating whether terrain following activity occurs on the route
- max_extent_nm: maximum distance in nautical miles that aircraft can deviate from the route centerline
Military Training Routes need to be taken seriously and avoided when possible, even though you are legally allowed to operate within an MTR. Unlike most airspace where manned aircraft are generally operating well above the altitudes where UAVs fly, on MTRs you have military jets skimming the tree tops and operating at speeds that can approach Mach 1. Pay particular attention when you see MTRs which have terrain_following = True. In those cases, these aircraft can be down at 200 FT AGL or lower. The probability of your UAV being in the same place at the same time as one of these aircraft may be small, but the consequences would be serious. When in doubt, contact the closest Flight Service Station for more information regarding MTR flight activity planned or in progress that day (1-800-992-7433).
Miscellaneous Activity Areas (MAA)
Third in the asptypes list we have MAA (Miscellaneous Activity Areas). Per the FAA, these are areas which are “published and/or charted to advise pilots of activity that may affect flight operations”. Feature properties given for MAA are:
- name: name of the area
- maa_type: one of the six categories of activity which the FAA charts
- AEROBATIC PRACTICE
- GLIDER
- HANG GLIDER
- PARACHUTE JUMP AREA
- SPACE LAUNCH ACTIVITY
- ULTRALIGHT
- use_times: textual description of the times when area is used for the designated activity (if known)
In all cases, it is up to the organization conducting these activities to report them to the FAA for charting/reporting. As a UAV operator you need to be aware of these areas due to the fact that these activities might occur at same altitudes in which you are flying. You need to be prepared to avoid conflict with any such activity.
If you are lucky, the use_times field will give concrete days/times when activities will take place. In our example however, the operator reporting the area has just specified DAILY, meaning parachute jumping might be in progress at any time during the day.
Controlled Airspace (CAS)
Finally, we have CAS (Controlled Airspace). The feature properties given for CAS are:
- name: name of the airspace
- cas_class: B, C, D, or E2
- floor: integer value in FT MSL
- ceiling: integer value in FT MSL
- laanc: boolean value indicating whether or not authorization for this airspace may be obtained via LAANC
We do not return results for Class A airspace (it begins at 18,000 FT MSL and you won’t be up there) or Class E airspace other than type E2 (because you are fine to operate in those other E-type areas without prior authorization). Below shows the Classified Airspace in our search area.
Given that LAANC is not available for this airspace, your airspace authorization request (if you don’t already have a waiver or prior authorization) could take a while so plan ahead.
